ABB 1SDA068092R1 — Molded Case Circuit Breakers (MCCB)

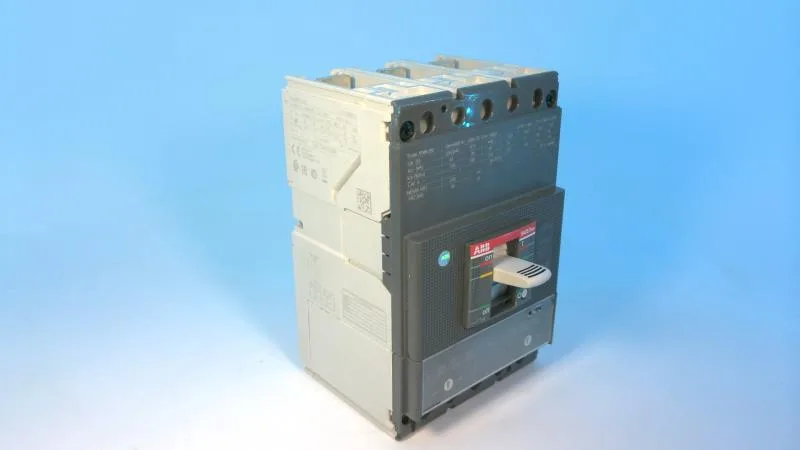

ABB 1SDA068092R1 XT4N 250 TMA Circuit Breaker, 250 A

MPN1SDA068092R1

ABB, XT4N series, distribution circuit breaker, 3 poles, In 250 A, Iu 250 A, TMA trip unit, size XT4.

$472.00 – $608.08Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

1SDA068092R1 — Ratings
ParameterValue
Number of poles3 poles
1SDA068092R1 — Other specifications
ParameterValue
In250
Iu250
DimensionsXT4
TypeXT4N 250 TMA 250-2500 3p F F
Weight2.3 Kg
Trip unitsTMA
Product typeXT4N 250 TMA 250-2500 3p F F Distribution Circuit Breakers
Dimensions (LxWxH)8.25cm x 10.5cm x 16cm
Current250 A
Voltage690 V
Rated frequency50 / 60 Hz

Product details

The 1SDA068092R1: This is an ABB XT4N 250 TMA distribution circuit breaker, three-pole, rated for continuous current of 250 A (both In and Iu match that figure). It's meant for distribution panels where you need a fixed thermal-magnetic trip unit with a wide adjustment range — the TMA here goes 250 up to 2500 A on the magnetic setting, so it covers motor and feeder protection in one can.

Typical lead time runs 2–4 weeks through distribution. No LTB window or surplus-channel risk here.

Leave clearance for the rotary handle and for cable bending radius — the 16 cm height includes the terminals. TMA trip unit provides thermal-magnetic protection. Rated continuous current is 250 A.

Frequently asked questions

What are the rated current (In) and ultimate current (Iu) values?

Both In and Iu are 250 A for this XT4N 250 TMA breaker, meaning it's rated for 250 A continuous load.

What is the physical size and weight?

Dimensions are 8.25 cm wide, 10.5 cm deep, and 16 cm tall; weight is 2.3 kg.
