ABB 1SDA068173R1

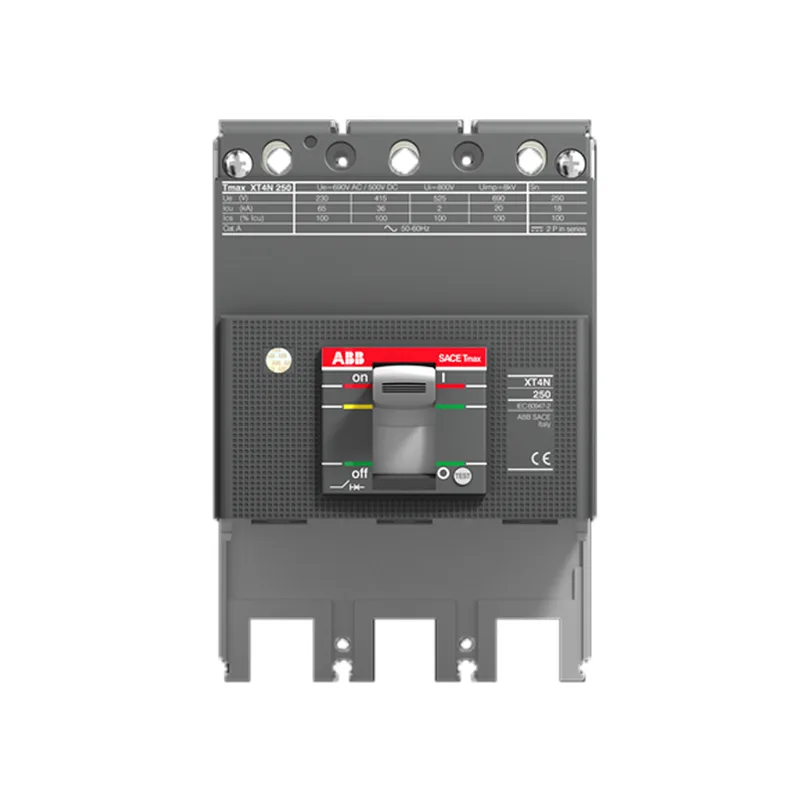

ABB 1SDA068173R1 XT4 Breaking Part, Iu 250 A, 3-pole

MPN 1SDA068173R1

ABB XT4N 250 BREAKING PART 3p F F, 1SDA068173R1, Iu 250 A, Icu 36 kA at 415 V, 3-pole, 690 V, 50/60 Hz.

$256.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1SDA068173R1 specifications
ParameterValue
Product typeXT4N 250 BREAKING PART 3p F F
Voltage690 V
Frequency50/60 Hz
Poles3 poles
Weight1.8 Kg
DimensionsXT4

Product details

Iu 250 A — continuous current rating for the XT4 frame

The 1SDA068173R1 is a breaking part for the ABB XT4 molded-case circuit breaker platform, rated for a continuous current Iu of 250 A. This is the current the main contacts can carry without exceeding the temperature rise limits of the XT4 frame — sized for feeder or motor branch circuits up to that ampacity. The breaking part is the service-replaceable internal assembly — the arc chamber, contacts, and mechanism — not the complete breaker with the case and terminals. It fits into the XT4N 250 frame, 3-pole, with front-connection (F F) terminals.

Icu 36 kA at 415 V — short-circuit breaking capacity

The ultimate short-circuit breaking capacity Icu is 36 kA at 415 V AC. This is the maximum prospective fault current the breaking part can safely interrupt once without damage — a key figure for the panel designer's selective coordination study. At 690 V the Icu will be lower (per the ABB XT4 curve), but the 36 kA at 415 V covers most industrial 400 V distribution. Rated voltage is 690 V AC, rated frequency 50/60 Hz, so the part is suitable for global mains supplies. The 3-pole configuration handles three-phase circuits.

Lifecycle and sourcing — current production, no direct replacement

Sourced to order against the BOM quantity. Availability and current pricing are confirmed at RFQ through independent distribution channels. The 1SDA068173R1 is a fast-moving spare for installed XT4 panels — keep one on the shelf if the plant runs multiple XT4 breakers.

MPN
1SDA068173R1
