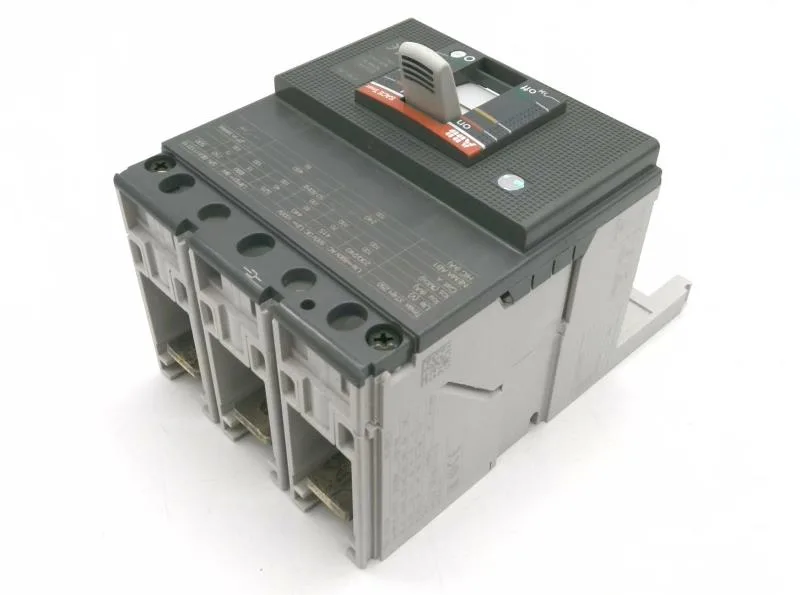

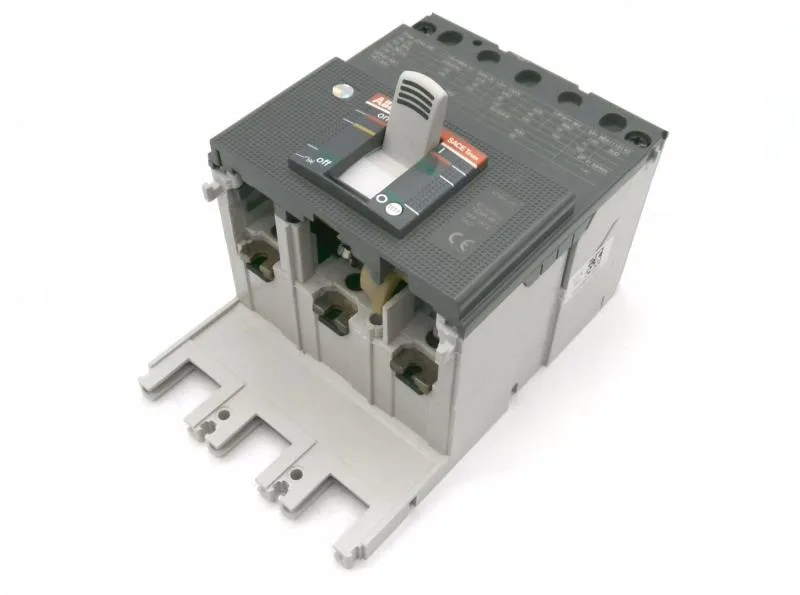

ABB 1SDA068175R1, XT4H 250 breaking part, 3-pole, rated Iu 250 A, Icu 70 kA at 415 V, for 690 V systems, 50/60 Hz.
| Parameter | Value |
|---|---|
| Number of poles | 3 poles |
| Parameter | Value |
|---|---|
| Iu | 250 |
| Dimensions | XT4 |
| Type | XT4H 250 BREAKING PART 3p F F |
| Weight | 1.7 Kg |
| Icu (415 v) | 70 |
| Product type | Breaking Part |
| Dimensions (LxWxH) | 8.25cm x 10.5cm x 16cm |
| Voltage | 690 V |
| Rated frequency | 50 / 60 Hz |
The 1SDA068175R1: This is the movable interrupter (breaking part) for the ABB XT4H 250 molded-case circuit breaker frame, 3-pole configuration. Rated Iu 250 A and Icu 70 kA, with a maximum operating voltage of 690 V and rated frequency 50/60 Hz.
The rated uninterrupted current (Iu) is 250 A.
It belongs to frame size XT4.
