The 1SFA896111R1100: A run signal relay and by-pass signal relay are built in; no fault or overload signal relay. Overload protection is handled externally via the recommended MS450 (36–45 A) unit. Screw terminals for main circuit accept 1x 6–35 mm² rigid; control circuit terminals take 1x 0.75–2.5 mm². Tightening torque for control circuit is 0.6 N·m (5.3 in·lb UL).

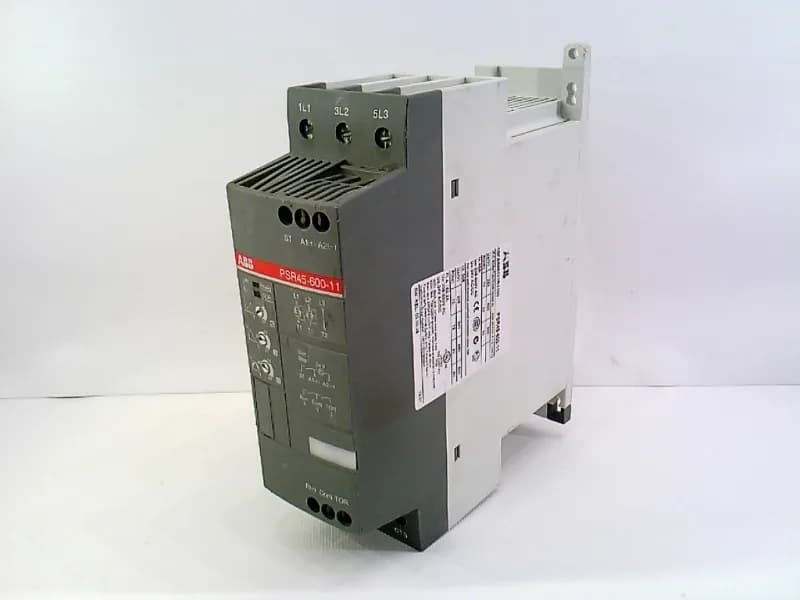

ABB PSR45 Soft Starter 1SFA896111R1100, 24V AC/DC
MPN1SFA896111R1100
Active
ABB PSR45 soft starter, 1SFA896111R1100, voltage ramp control, 0-20s ramp time, 24V AC/DC control, up to 600V AC.
$474.98 – $685.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Terminal type | Screw Terminals |
| Product main type | PSR45 |
| Voltage | 208 ... 600 V AC |
| Initial voltage during start | 40 ... 70 % |
| Step down voltage special ramp | 100 ... 60 % |
| Rated control supply voltage | 24 V AC/DC |
| Rated control circuit voltage | 24 V DC |
| Technical UL (CSA, maximum operating voltage UL, CSA) | Main Circuit 600 V |
| Current limit function | No |
| Starting capacity at maximum rated current ie | 4xIe for 6s |
| Rated operational current - In-Line connection | 45 A |
| Technical UL (CSA, horsepower rating UL, CSA) | (200 ... 208 V AC) Three Phase 15 Hp |
All specifications+32 ▾
| Parameter | Value |
|---|---|
| Rated operational power - In-Line connection | (230 V) 11 kW |
| Rated frequency | 50/60 Hz |
| IP rating | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Protocol | FiledBusPlug(Optional) |
| Switch for inside delta connection | No |
| Popular downloads (CAD dimensional drawing) | 2CDC001079B0201 |
| Material compliance (Toxic substances control act - TSCA) | 2CMT2023-006524 |
| Material compliance (Conflict minerals reporting template) | 9AKK108467A5658 |
| Technical UL (CSA, tightening torque UL, CSA) | Control Circuit 5.3 in·lb |
| Function | Soft start with voltage ramp |
| Ramp time | 0 ... 20 second [unit of time] |
| Run signal relay | Yes |
| Tightening torque | Control Circuit 0.6 N·m |
| Fault signal relay | No |
| Overload protection | Recommended MS450 36 ... 45 |
| By-pass signal relay | Yes |
| Overload signal relay | No |
| Ambient air temperature | Operation -25 ... +60 °C |
| Service factor percentage | 100 % |
| Object classification code | Q |
| Popular downloads (EPLAN data) | 9AAC129854_EPLAN |
| Integrated electronic overload | No |
| Connecting capacity main circuit | Rigid 1x 6 ... 35 mm² |
| Signal indication running r | Green |
| Connecting capacity supply circuit | Rigid 1 x 0.75 ... 2.5 |
| IDEA granular category code | 4740 >> Soft starter |
| Connecting capacity control circuit | 1 x 0.75 ... 2.5 mm² |
| Signal indication ramping up (Down) | Green |
| Popular downloads (Instructions and manuals) | 1SFC132078M9901 |
| Signal indication completed start ramp | Green |
| Popular downloads (Data sheet, technical information) | 1SFC132012C0201 |
| Popular Downloads/Instructions and manuals (Part 3) | 1SFC132060M0201 |
Product details
Frequently asked questions
What is the function of 1SFA896111R1100?
Soft start with voltage ramp control.
What is the adjustable ramp time range?
0 to 20 seconds.
MPN
1SFA896111R1100
