ABB 1SFA896203R7000

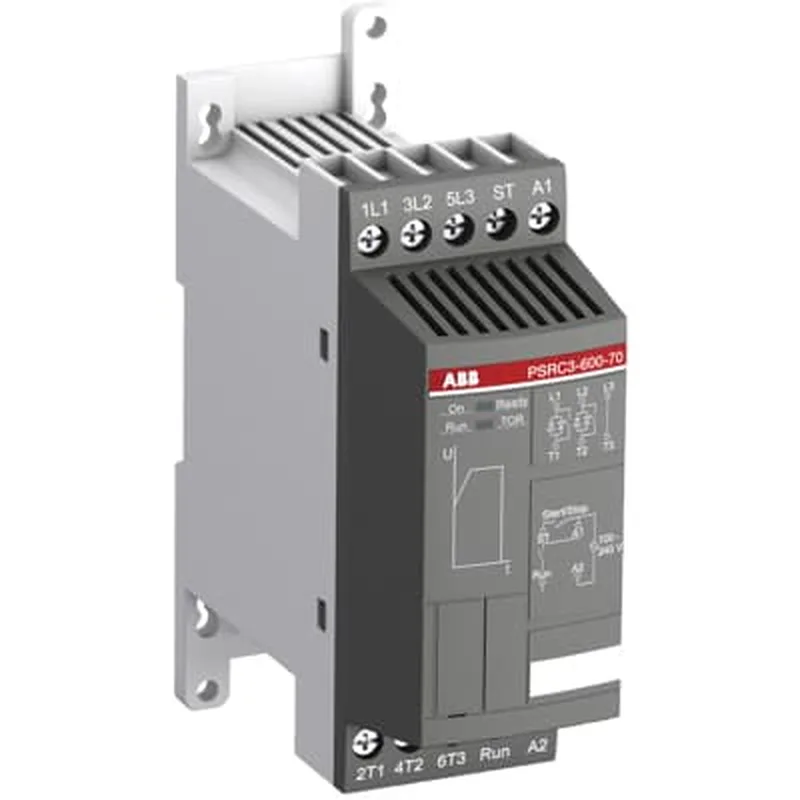

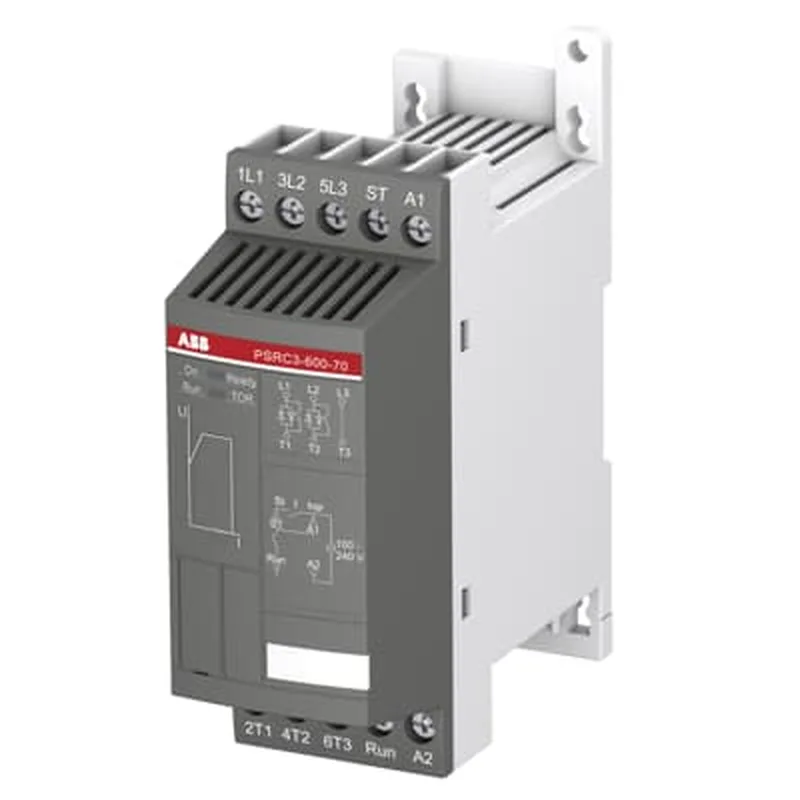

ABB 1SFA896203R7000 PSRC3 Soft Starter, 208-600 V AC

MPN 1SFA896203R7000
Active

ABB, PSRC3, Soft Starters, 1SFA896203R7000, Soft start with voltage ramp, 208... 600 V AC, 50/60 Hz, Fixed setting ramp time, Screw Terminals, IP20, Operation -25... +60 °C.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1SFA896203R7000 specifications
ParameterValue
Terminal typeScrew Terminal
Voltage208 ... 600 V AC
Frequency50/60 Hz
ProtocolFiledBusPlug(Optional)
Temp operating max60 °C
Temp operating min-25 °C

Product details

What this PSRC3 soft starter does

The ABB 1SFA896203R7000 is a PSRC3 soft starter that applies a voltage ramp to bring a motor up to speed, with a fixed ramp time and a fixed initial voltage during start. It's built for three-phase induction motors on 208 to 600 V AC supplies, 50/60 Hz, and handles a starting capacity of 4x the rated current for 6 seconds — enough to get most standard motors turning without a hard mechanical jolt. The control circuit runs on 24 V DC, while the rated control supply voltage for the unit itself is 100 to 240 V AC. A green LED signals running, ramping up/down, and completed start ramp — three distinct indications from a single LED colour, so you read the sequence rather than the shade.

Screw terminals on the main circuit accept rigid 2 x 0.75 to 1.5 mm² conductors. The supply circuit uses the same size. Tighten control circuit terminals to 1 N·m (8.9 in·lb per UL/CSA). Degree of protection is IP20 on the main terminals — fine inside a clean panel, not for wet or dusty locations. Optional FiledBusPlug communication is available if you need network integration. The unit has a run signal relay (yes), but no fault signal relay, no by-pass signal relay, and no overload signal relay — so plan your external indication or PLC inputs accordingly.

For an official replacement path if that changes, ABB typically rolls PSRC3 into the next PSRC generation; check the ABB PSRC lineup for the closest functional equivalent when the time comes.

MPN
1SFA896203R7000
