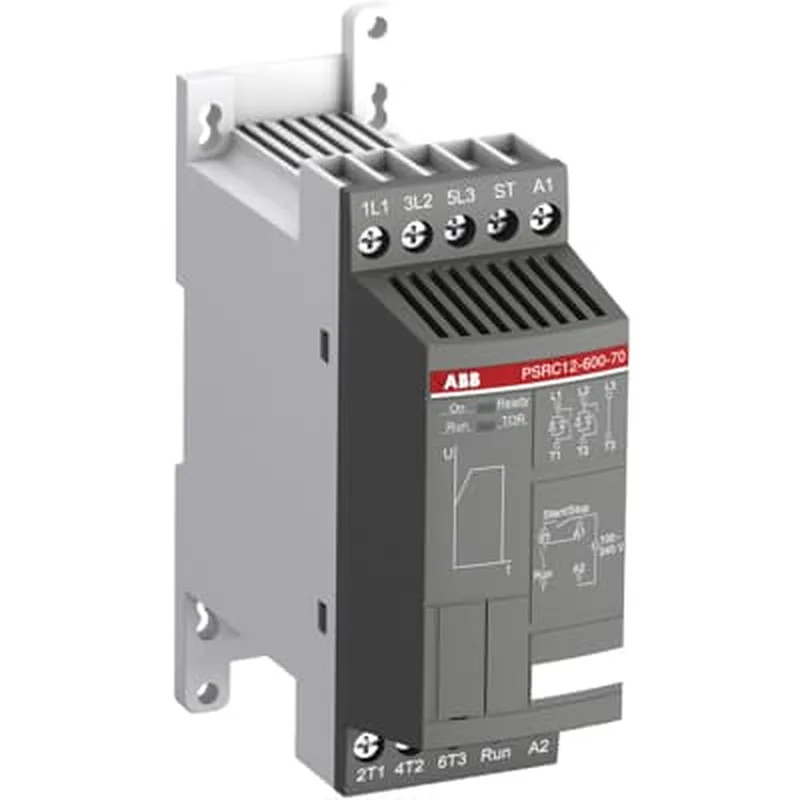

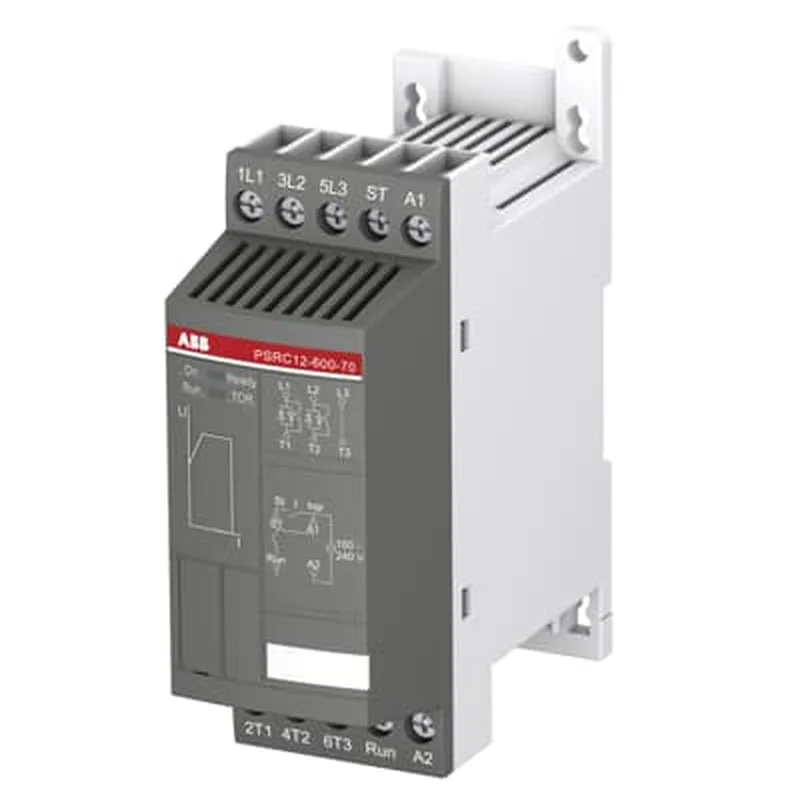

The ABB 1SFA896206R7000 is a PSRC12 soft starter that applies a voltage ramp to limit inrush during motor start — it's a fixed-ramp design, no current limit or adjustable ramp profile, so the starting torque curve is set by the voltage ramp shape. It's rated for 208...600 V AC three-phase motors and delivers 4xIe for 6 seconds starting capacity, which covers most standard induction motor starts on pumps, fans, and light conveyors. The control circuit runs on 24 V DC, while the supply for the power electronics is 100...240 V AC — separate circuits, so verify both are present before commissioning.
Control and signaling
The unit includes a run signal relay (yes) but no fault signal relay and no bypass signal relay — so if you need a separate fault indication back to the PLC, plan for an external relay or use the run relay inverted. Three green LEDs indicate running, ramping up/down, and completed start ramp — useful for local diagnostics without opening the panel door. Screw terminals on the control circuit require 1 N·m tightening torque (8.9 in·lb for UL installations).
