ABB 1SFA897101R7000

ABB 1SFA897101R7000 PSE18 Soft Starter, 208-600 V AC, Modbus

MPN 1SFA897101R7000
Active

ABB PSE18, Soft start with torque control, 1SFA897101R7000, 208-600 V AC, 0-30 s ramp, Modbus-RTU, 4-20 mA analog outputs, screw terminals.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1SFA897101R7000 specifications
ParameterValue
Terminal typeScrew Terminal
Voltage208 ... 600 V AC
Frequency50/60 Hz
ProtocolModbus-RTU
Temp operating max60 °C
Temp operating min-25 °C

Product details

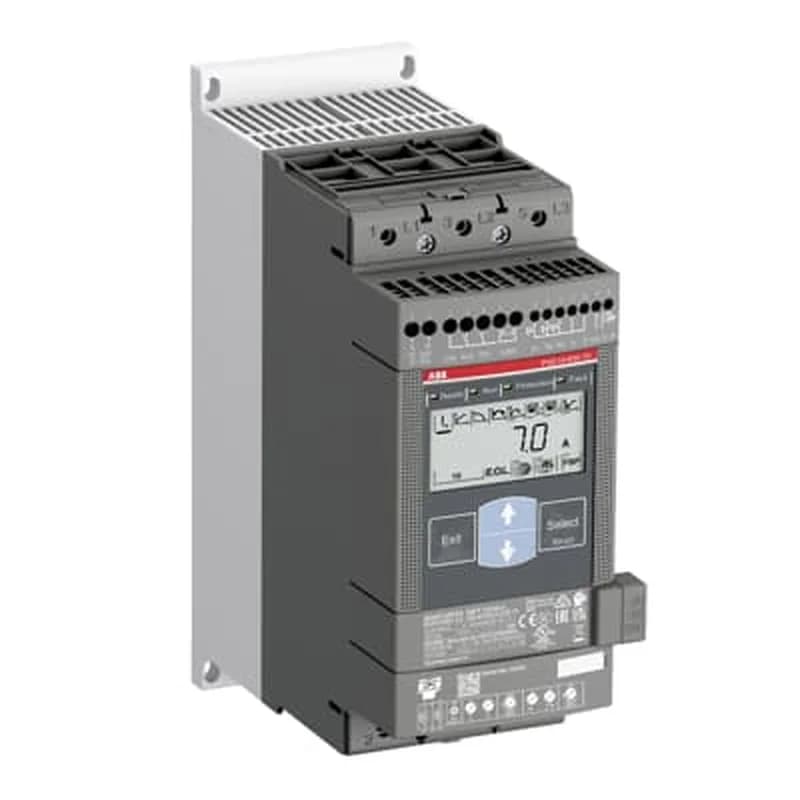

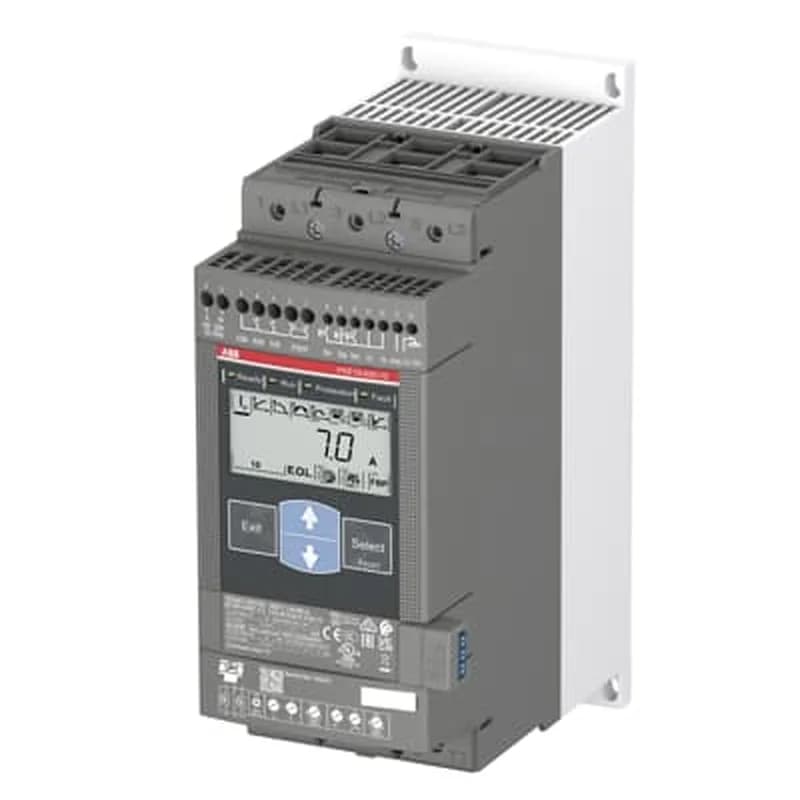

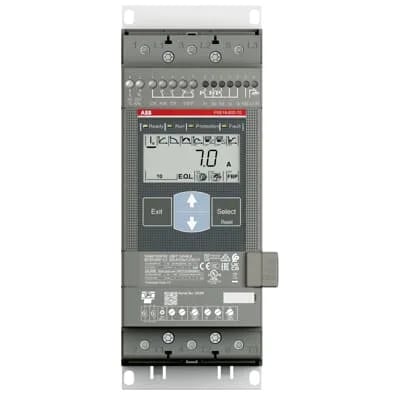

Soft starter with torque control — PSE18, 208-600 V AC

The ABB 1SFA897101R7000 is a PSE18 soft starter with integrated torque control, designed to ramp motors smoothly from 30% to 70% initial voltage over a 0-30 second adjustable ramp time. Rated operational voltage spans 208-600 V AC at 50/60 Hz, with a control supply of 100-250 V AC and a separate 24 V DC control circuit for logic. Communication is Modbus-RTU over screw terminals, with 4-20 mA analog outputs for speed or torque feedback to a PLC or drive controller. Built-in electronic overload protection covers locked rotor, current underload, and EOL (early overload limit) conditions, with a current limit adjustable from 1.5x to 7x Ie. Three signal relays — run, fault, and bypass — plus an overload signal relay give the panel builder discrete status feedback without extra I/O modules.

Main terminals are IP00 per IEC 60529 and IEC 60947-1 — no enclosure rating on the power block itself, so mount inside a panel with at least IP54 for washdown areas. Screw terminals on the control circuit accept 1 x 2.5 mm² rigid; tighten to 0.5 N·m. Main circuit connection uses an 8.5 mm hole diameter — plan for ring terminals or busbar lugs.

MPN
1SFA897101R7000
