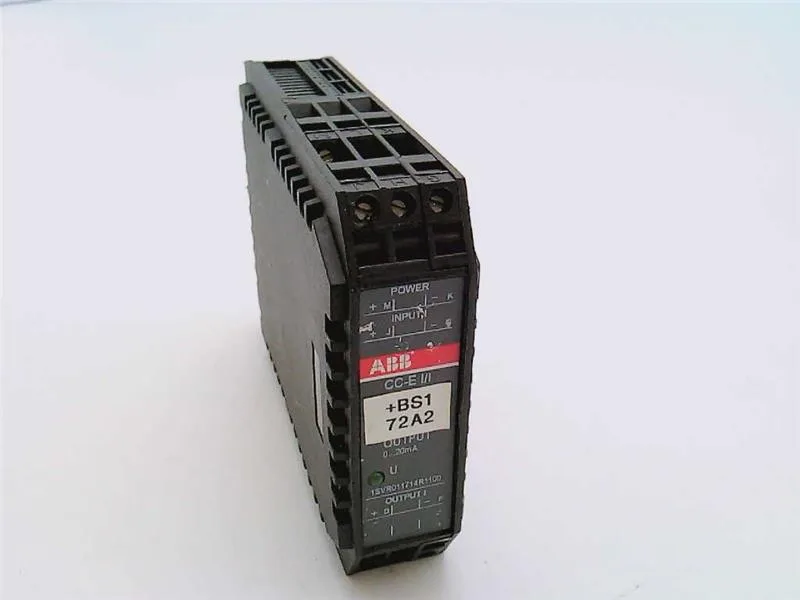

The ABB 1SVR011714R1100 is a CC-E I/I signal converter, single-function, designed to isolate and retransmit a 0-20 mA current loop. It accepts a 0-20 mA input and reproduces it as a 0-20 mA output, powered from a 24 V DC supply. The ±0.5 % of full-scale accuracy means that at a 20 mA output, the deviation stays within 0.1 mA — tight enough for most PLC analog input cards without needing a separate calibration trim. The 200 µs response time keeps loop dynamics fast, so it won't introduce lag in a closed-loop control path.
ABB 1SVR011714R1100 CC-E I/I Signal Converter, ±0.5% Accurac
MPN1SVR011714R1100
ABB CC-E I/I Signal converter, singlef., 1SVR011714R1100, 0-20 mA in/out, ±0.5 % accuracy, 200 µs response.
$212.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.085 Kg |
| Accuracy | ± 0.5 % of full-scale |
| Input signal | 0-20 mA |
| Product type | CC-E I/I Signal converter, singlef. |
| Output signal | 0-20 mA |
| Response time | 200 µs |
| Supply voltage | 24 V DC |
| IP rating | IP20 |
| Dimension (lxwxh) | 10.7 x 2.25 x 7.5 cm |
| Ambient temperature range | 0...+60 °C / -20...+80 °C |
Product details
Frequently asked questions
What is the accuracy of this signal converter?
The accuracy is ±0.5 % of full-scale. For a 0-20 mA output, that translates to a maximum deviation of ±0.1 mA at the 20 mA endpoint. This is sufficient for standard 4-20 mA loop monitoring and control without requiring field calibration.
What is the response time, and does it affect closed-loop control?
The response time is 200 µs. That is fast enough to pass through a 5 kHz signal component without phase lag, so it will not limit the bandwidth of a typical process control loop or a fast-acting PLC analog input.
What is the physical size and mounting requirement?
The dimensions are 10.7 x 2.25 x 7.5 cm and it weighs 0.085 kg. It mounts on a standard DIN rail. The IP20 rating means it must be installed inside a closed control cabinet, not in a washdown or outdoor location.
MPN
1SVR011714R1100
