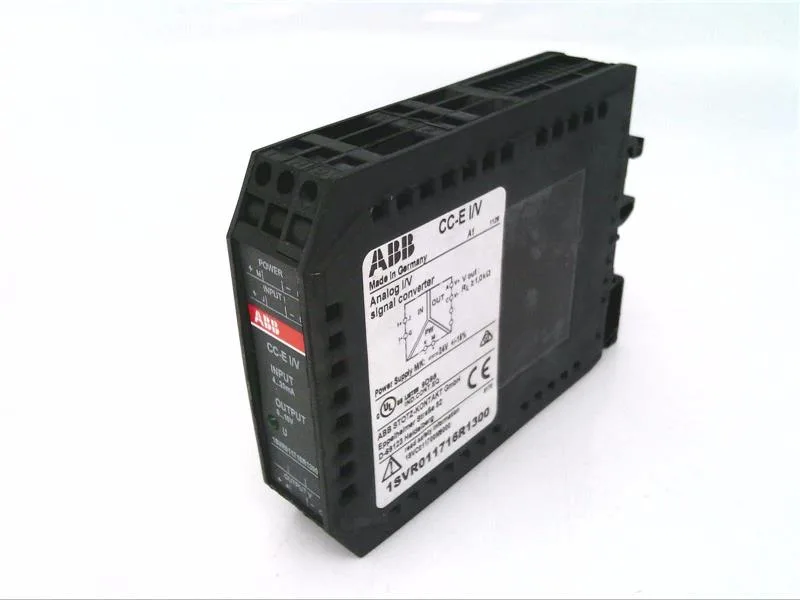

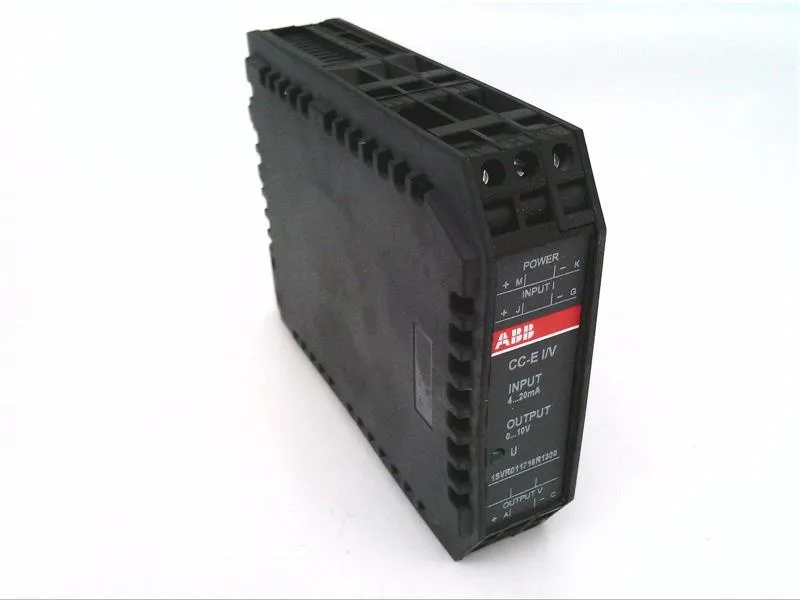

The ABB 1SVR011716R1300 is a signal converter that takes a 4-20 mA current-loop input and outputs a proportional 0-10 VDC signal, powered from a 24 VDC supply. This is the standard analog interface for PLC analog input cards that expect voltage rather than current — common when retrofitting a current-loop transmitter into a voltage-only card or when you need to isolate the loop from the control side.
The 4-20 mA input range and 0-10 V output are the two most common analog signal levels in industrial control. The 24 VDC supply is standard for panel power. This converter handles the full 4-20 mA span linearly to 0-10 V, so a 12 mA loop current (50% of span) gives 5 V out. No external burden resistor needed — the converter presents a low input impedance to the loop and drives the voltage output directly.
