ABB 1SVR011718R2500 — General Purpose Relays

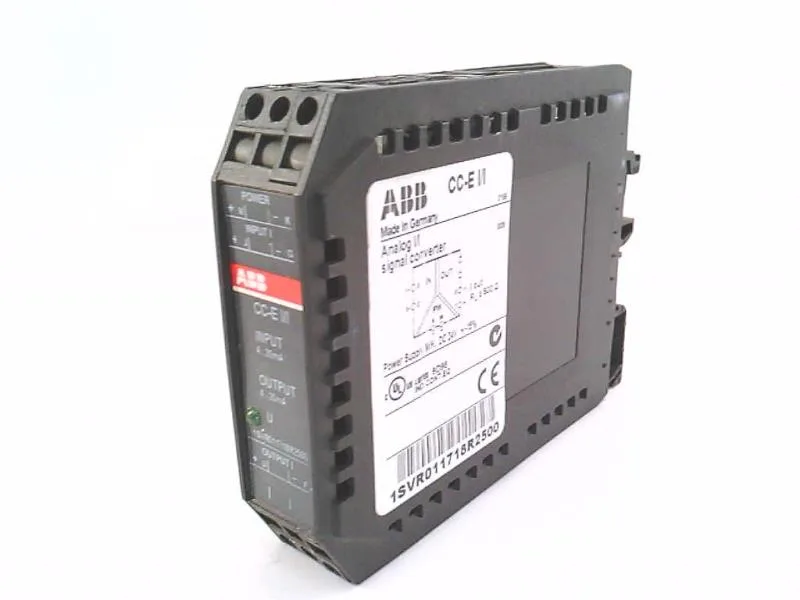

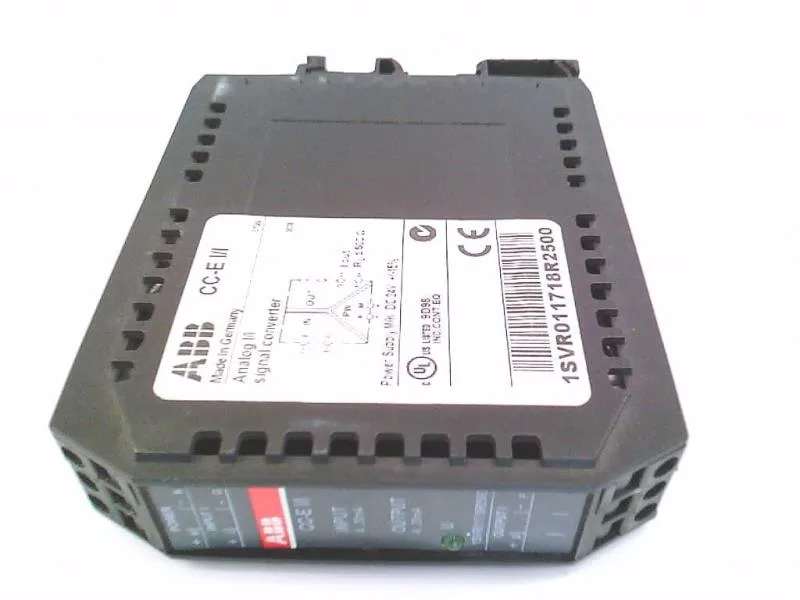

ABB 1SVR011718R2500 CC-E I/I Signal Converter, 4-20 mA, 200

MPN1SVR011718R2500

ABB CC-E I/I Signal converter, singlef., 1SVR011718R2500, 4-20 mA input/output, ±0.5 % accuracy, 200 µs response time, 24 V DC supply, IP20, 0.084 Kg.

$499.58Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1SVR011718R2500 — Specifications
ParameterValue
Weight0.084 Kg
Accuracy± 0.5 % of full-scale
Input signal4-20 mA
Product typeCC-E I/I Signal converter, singlef.
Output signal4-20 mA
Response time200 µs
Supply voltage24 V DC
IP ratingIP20
Dimension (lxwxh)10.7 x 2.25 x 7.5 cm
Ambient temperature range0...+60 °C / -20...+80 °C

Product details

The ABB 1SVR011718R2500 is a single-function CC-E I/I signal converter that takes a 4-20 mA input and reproduces it as a 4-20 mA output, isolated and conditioned for the control loop. It's the kind of part you spec when you need to break a ground loop, shift the signal reference, or protect a PLC analog input card from a field transmitter that's seen better days. Response time is 200 µs — fast enough for most process signals (pressure, flow, level) but not for high-speed motion control. The ±0.5 % of full-scale accuracy means at 20 mA you're within 0.1 mA of the true value; for a 0-100 bar transmitter that's ±0.5 bar. That's standard for this class; if your loop needs better than 0.1 %, you're looking at a different tier of transmitter, not the isolator.

The ambient temperature range is 0...+60 °C operating, -20...+80 °C storage. That covers most indoor panel environments; if your cabinet sits next to a furnace or in a freezer warehouse, watch the operating ceiling.

Frequently asked questions

What is the response time and why does it matter?

200 µs. That's fast enough to pass a 4-20 mA signal from a pressure transmitter or temperature sensor without introducing lag that would upset a PID loop. It is not fast enough for high-speed digital or encoder signals — those need a different class of isolator.
