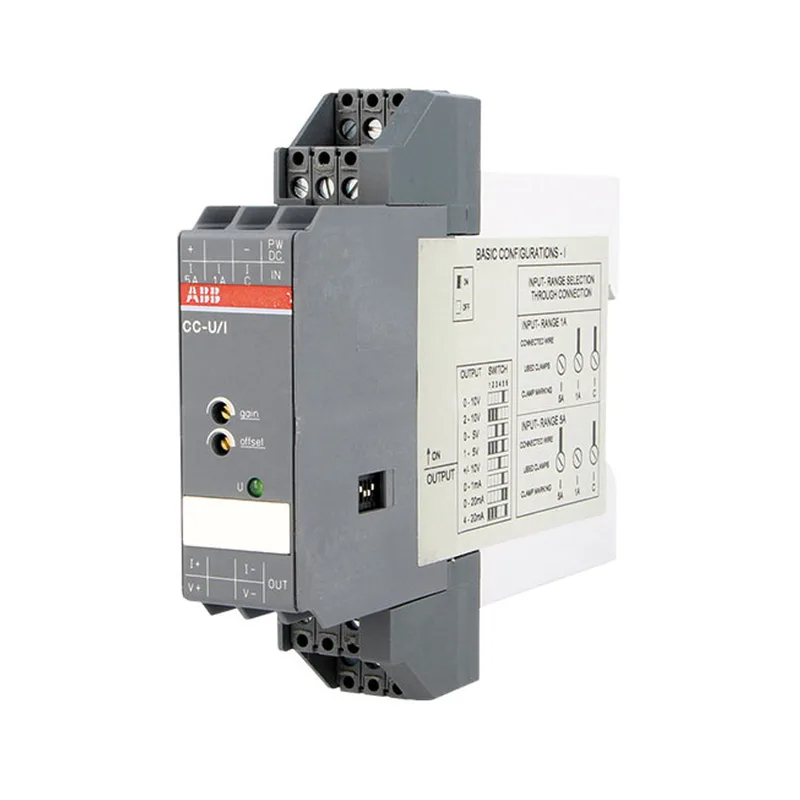

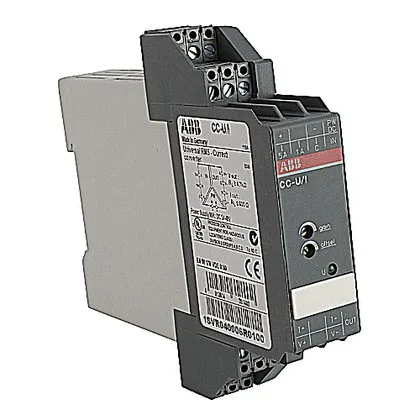

The ABB 1SVR040006R0100 is a CC-U/I universal signal converter that takes a current RMS input — either 0...1 A or 0...5 A — and outputs a proportional bipolar signal of 0...±55 mA or 0...±11 V. The ±0.5 % of full-scale accuracy means that at a 5 A input, the error stays under 25 mA; that's tight enough for most panel-level monitoring and control loops where you're feeding a PLC analog input or a drive's analog reference. The 150 ms response time is the settling time to 90 % of final value — fine for process signals like pump discharge pressure or conveyor speed feedback, but too slow for fast fault detection on a servo axis.
Universal signal converters like this one sit between a field transducer — say a current transformer on a motor feeder or a shunt on a DC drive — and the control system. They isolate, scale, and linearize the raw signal so a PLC analog input card sees a clean voltage or current range. Common on motor control centers, pump skids, and power-monitoring panels where you need to bring a CT secondary (1 A or 5 A) into a 0-10 V or 4-20 mA loop.
