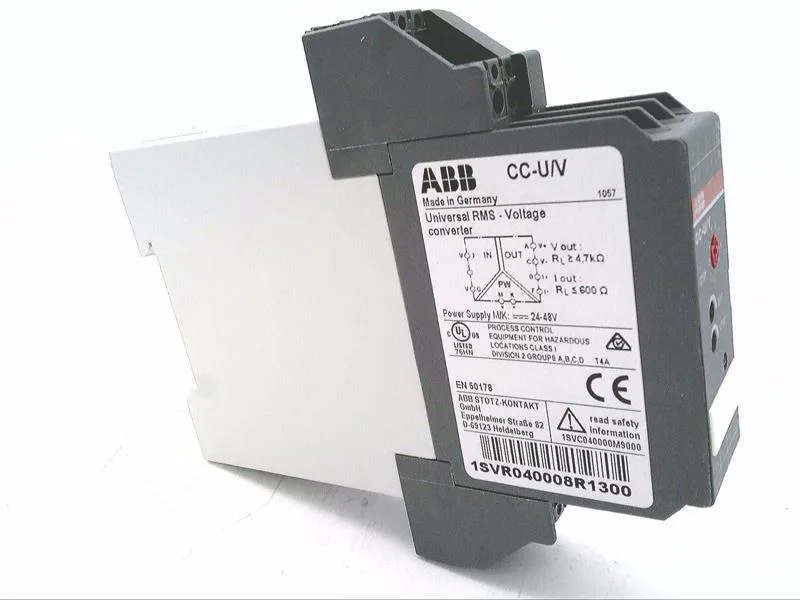

The ABB 1SVR040008R1300 is a CC-U/V universal signal converter that accepts voltage RMS inputs from 0 to 600 V and outputs a proportional signal of 0…±55 mA or 0…±11 V. It's a DIN-rail mounted module for converting AC or DC voltage measurements into a standard analog process signal for a PLC, DCS, or panel meter. Accuracy is ±0.5 % of full-scale, and the response time is 150 ms — fast enough for monitoring and control loops that don't need sub-cycle updates, like motor current trending or pump discharge pressure. Rated supply voltage is 24-48 V DC, and the ambient temperature range spans -20 to +60 °C operating, -40 to +80 °C storage, so it handles typical panel environments without derating.
ABB 1SVR040008R1300 CC-U/V Universal Signal Converter, 0-600
MPN1SVR040008R1300
ABB CC-U/V Universal signal converter, 1SVR040008R1300, voltage RMS input 0-600V, output 0…±55 mA / 0…±11V, accuracy ±0.5% FS, 24-48 V DC supply.
$1,060.63 – $1,324.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.128 Kg |
| Accuracy | ±0.5 % of full-scale |
| Input signal | Voltage RMS values 0 ... 600V |
| Product type | CC-U/V Universal signal converter |
| Output signal | 0 ... ± 55 mA / 0 ... .± 11V |
| Response time | 150 ms |
| Dimension (lxwxh) | 12.0 x 2.25 x 10.5 cm |
| Rated supply voltage | 24-48 V DC |
| Ambient temperature range | -20...+60 °C / -40...+80 °C |
Product details
Frequently asked questions
What is the input range of the 1SVR040008R1300?
It accepts voltage RMS values from 0 to 600 V, covering standard low-voltage AC and DC measurements up to 600 V.
What output signals does the 1SVR040008R1300 provide?
It outputs 0…±55 mA or 0…±11 V, selectable to match the input range of a PLC analog card or panel indicator.
Where can I buy the 1SVR040008R1300?
This part is sourced and quoted to order against an RFQ through independent distribution. Submit an RFQ for current availability and pricing.
