The ABB 1SVR040009R1400 is a CC-U/V universal signal converter that takes a voltage RMS input from 0 to 600V and produces a bipolar output signal of 0 to ±55 mA or 0 to ±11V. It runs on a 110-240V AC supply and delivers that conversion with ±0.5% of full-scale accuracy. The 150 ms response time means it's suited for monitoring applications where you need a steady process value, not high-speed switching or fast transient capture. You'd use this to feed a PLC analog input or a DCS card with a clean, isolated representation of line voltage.

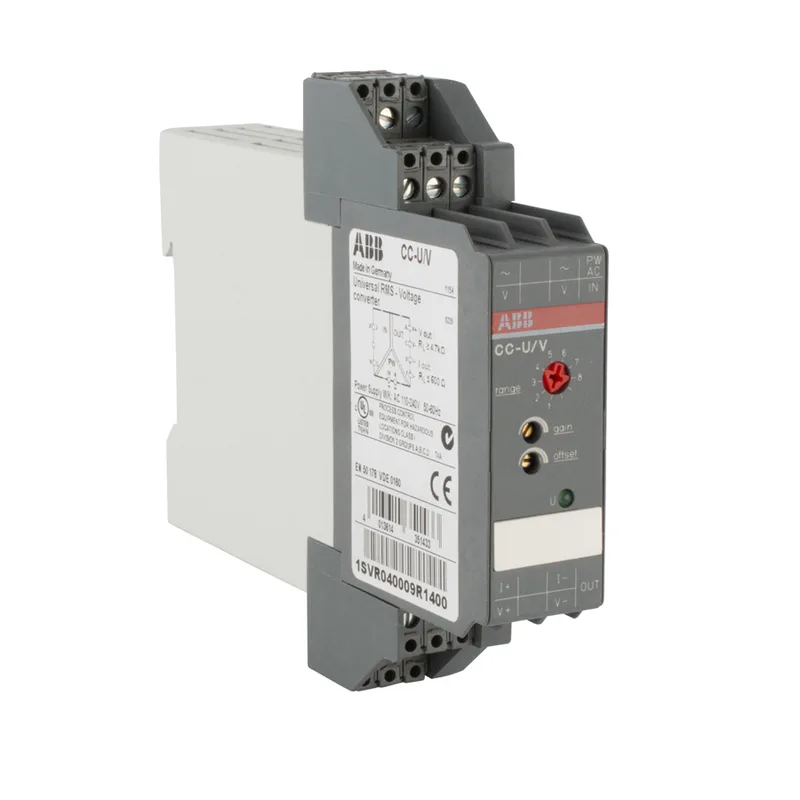

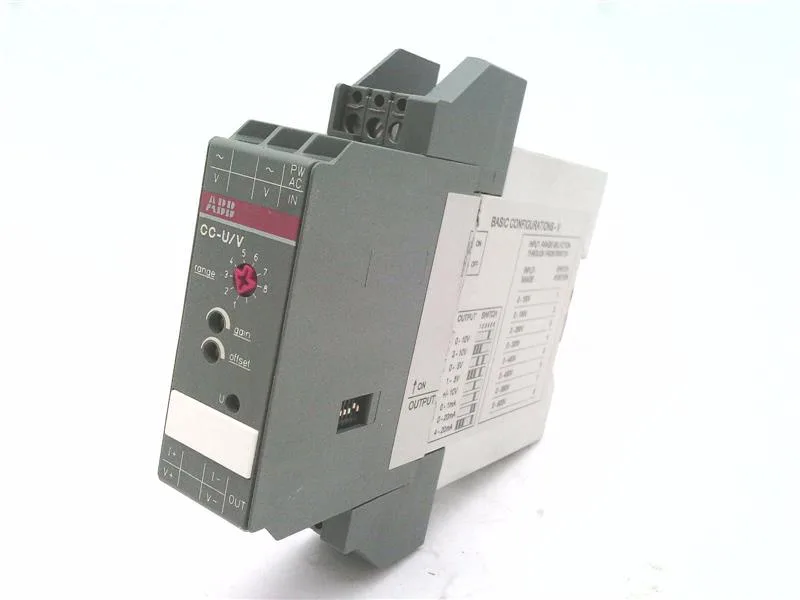

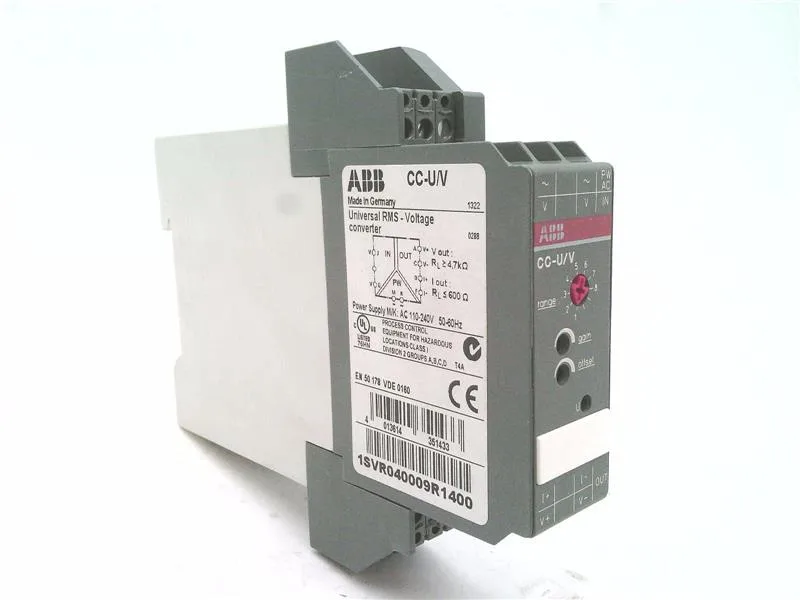

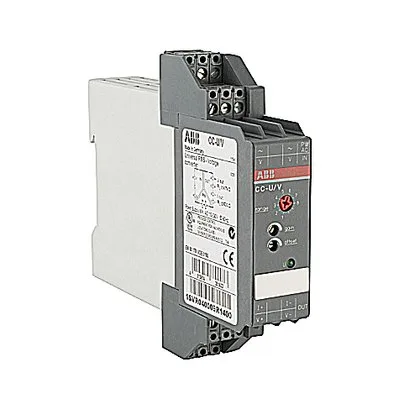

ABB 1SVR040009R1400 CC-U/V Universal Signal Converter, 0-600
MPN1SVR040009R1400
ABB CC-U/V Universal signal converter, 1SVR040009R1400, input 0-600V RMS, output 0…±55 mA / 0…±11V, 110-240V AC supply, ±0.5% accuracy.
$422.00 – $824.83Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.128 Kg |
| Accuracy | ±0.5 % of full-scale |
| Input signal | Voltage RMS values 0 ... 600V |
| Product type | CC-U/V Universal signal converter |
| Output signal | 0 ... ± 55 mA / 0 ... .± 11V |
| Response time | 150 ms |
| Dimension (lxwxh) | 12.0 x 2.25 x 10.5 cm |
| Rated supply voltage | 110-240 V AC |
| Ambient temperature range | -20...+60 °C / -40...+80 °C |
Product details
Frequently asked questions
What are the key input and output ratings?
It accepts voltage RMS inputs from 0 to 600V and provides a bipolar output of 0 to ±55 mA or 0 to ±11V, with an accuracy of ±0.5% of full-scale.
What power supply does it need?
Rated supply voltage is 110-240 V AC, which covers standard single-phase mains in most industrial plants.
