The ABB 1SVR040011R2500 is a CC-U/STDR universal signal converter that takes a field transmitter's analog signal — 0…20 mA, 4…20 mA, 0…1 V, 1…5 V, 0…10 V, or ±10 V — and drives two independent SPDT relay outputs. The 10 ms response time means it catches fast process upsets without missing a transition; the ±0.5 % repeat accuracy keeps the trip point stable across the temperature span.

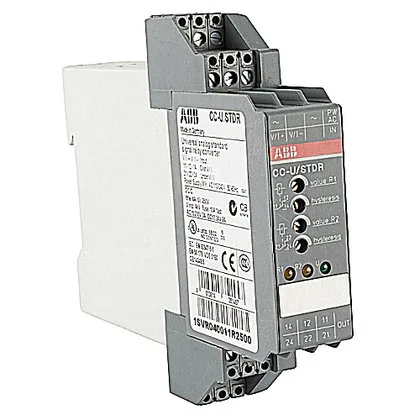

ABB 1SVR040011R2500 CC-U/STDR Universal Signal Converter, 11
MPN1SVR040011R2500
ABB 1SVR040011R2500 CC-U/STDR universal signal converter, 110-240 V AC supply, 0…20 mA / 4…20 mA / 0…1 V / 1…5 V / 0…10 V / ±10 V input, 2 c/o (SPDT) relay output, 10 ms response time.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.142 Kg |
| Input signal | 0 ... 20 mA / 4 ... 20 mA / 0 ... 1 V / 1 ... 5 V / 0 ... 10 V / ±10 V |
| Product type | CC-U/STDR Universal signal converter |
| Output signal | 2 c/o (SPDT) contacts |
| Response time | 10 ms |
| Dimension (lxwxh) | 12.0 x 2.25 x 10.5 cm |
| Rated supply voltage | 110-240 V AC |
| Ambient temperature range | -20...+60 °C / -40...+80 °C |
| Repeat accuracy (constant parameters) | ±0.5 % of full-scale |
Product details
Frequently asked questions
What input signals does the 1SVR040011R2500 accept?
It accepts 0…20 mA, 4…20 mA, 0…1 V, 1…5 V, 0…10 V, and ±10 V — six ranges selectable via DIP or jumper.
What is the output of the 1SVR040011R2500?
Two c/o (SPDT) relay contacts, rated for the load curve of the downstream PLC or alarm annunciator.
Where can I buy the 1SVR040011R2500?
It is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.
