8 A DPDT switching for control panel isolation

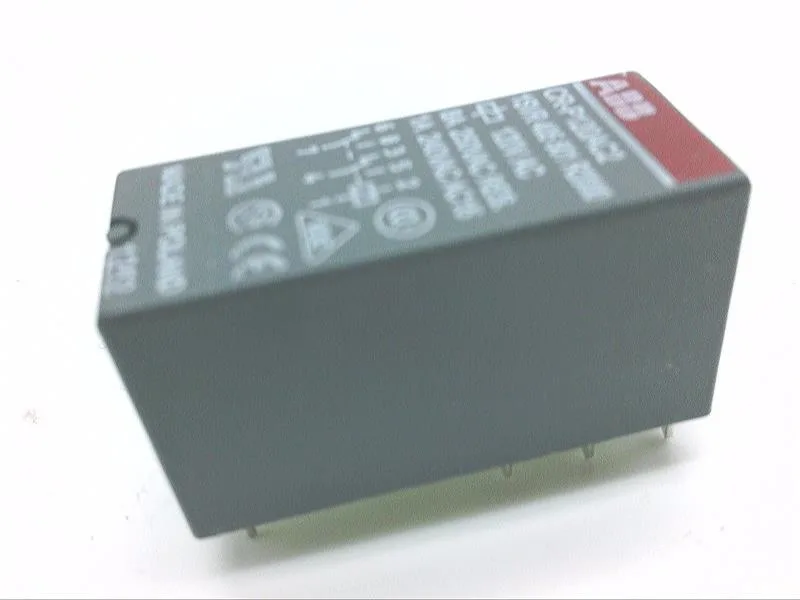

The 1SVR405601R2000 is an ABB CR-series interface relay rated 8 A at 250 VAC, DPDT contact arrangement, with a 120 VAC coil. The 8 A continuous rating covers typical PLC digital output loads, solenoid valves, contactor coils, and indicator lamps within a control cabinet. DPDT (two Form C) contacts give you two isolated switch paths per relay — one can handle the load circuit while the other provides a status feedback signal to the controller, without sharing a common terminal.
Socket-mount field replacement without panel rewiring
The 8-blade base plugs into a matching socket — the relay itself is a field-replaceable cartridge. When the coil fails or contacts weld, you pull the old relay and push in a replacement without touching the panel wiring. The socket stays on the DIN rail or panel. This form factor is standard across the ABB CR family, so the socket footprint is consistent if you later switch to a different CR variant with the same base pattern.
Active production — sourced per BOM quantity
Sourced through authorized distribution channels against your BOM quantity.
