ABB 1SVR405613R1100

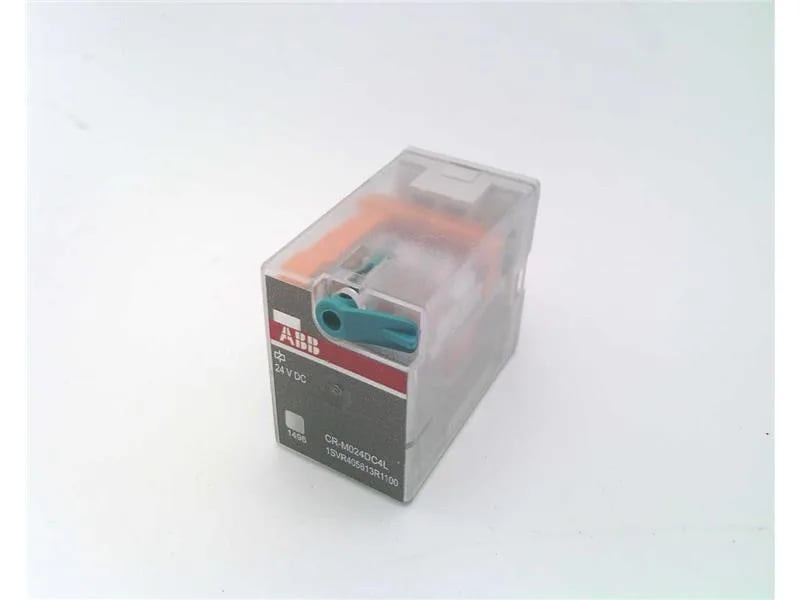

ABB 1SVR405613R1100 General Purpose Relay, 4PDT, 6 A, 24 VDC

MPN 1SVR405613R1100

ABB CR-M series ice cube relay, 1SVR405613R1100, 4PDT, 24 VDC coil, 6 A contact rating, 14-blade socket-mount base, LED indication.

$6.17 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1SVR405613R1100 specifications
ParameterValue
Product typeGeneral Purpose Relay
Current6 A
Poles4
MountingSocket

Product details

Ice cube relay, 4PDT, 24 VDC coil — CR-M series

The 1SVR405613R1100: The 14-blade octal-style base mates with a standard socket, making it a drop-in spare for control panels that use this common footprint.

6 A contact rating — what it means on the line

The 6 A rating at 250 V is the resistive load limit per pole. For inductive loads like small contactor coils or solenoid valves, derate to roughly 3 A — the arc energy on break is higher. This relay is sized for signal-level switching in a PLC output cabinet or as an interposing relay between a 24 VDC controller and a 120 VAC load.

Socket mount, 14-blade base — panel fit

The 14-blade base (industry-standard octal pinout) plugs into a matching socket — no wiring to the relay body. This means a failed relay can be swapped in under a minute without disturbing the panel wiring. The LED across the coil gives a quick visual on coil health; if the LED is dark and the load isn't switching, suspect the coil supply, not the contacts.

MPN
1SVR405613R1100
