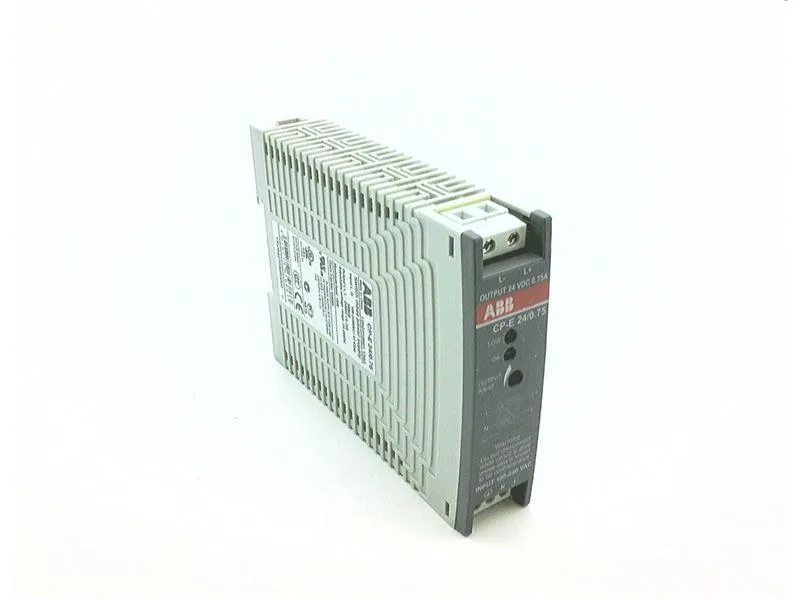

ABB 1SVR427030R0000
MPN1SVR427030R0000
Power Supply|ABB Power Supply With 90-264 Vac Or 120-375 Vdc Input Voltage And 24 Vdc At 0.75 Amprated Output With/without Wire End Ferrule And Rigid: 24 - 14 Awg (input/output); Enclosure: Ip20
$27.24 – $52.07Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Depth | 157 mm |
| Width | 22.5 mm |
| Height | 90 mm |
| Series | CP-E |
| Outputs | 1 |
| Output signal | Fixed |
| Rated power | 18 W |
| Output current 1 | 750 mA |
| Output voltage 1 | 24 V |
| Termination type | Screw Terminal |
| IP rating | IP20 |
| Input voltage max. | 264 VAC |
| Input voltage min. | 90 VAC |
| Insulation voltage | 300 V |
| Input voltage nominal | 100 ... 240 VAC |
| Output voltage nominal 1 | 24 V |
| Operating temperature max. | 70 °C |
| Operating temperature min. | -20 °C |
MPN
1SVR427030R0000
