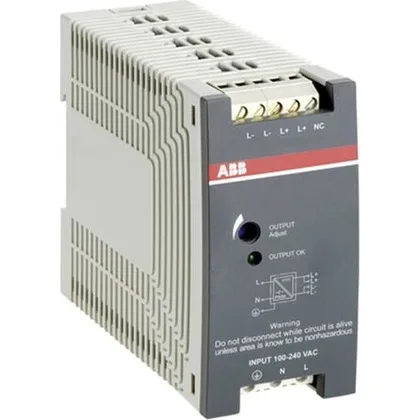

ABB 1SVR427031R0000
MPN1SVR427031R0000
Power Supply. 1.25A, 24VDC, Output, 100-240VAC Input|1.25 Amp, Power Supply. CP-E Series. 1-Phase. Rated Input Voltage: 100 - 240V AC. Rated Output Voltage: 24V DC. Rated Output Current: 1.25 Amps (30 Watts).
$108.90Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Depth | 154 mm |
| Width | 40.5 mm |
| Height | 90 mm |
| Series | CP-E |
| Outputs | 1 |
| Output signal | Fixed |
| Rated power | 30 W |
| Output current 1 | 1.25 A |
| Output voltage 1 | 24 V |
| Termination type | Screw Terminal |
| IP rating | IP20 |
| Input voltage max. | 264 VAC |
| Input voltage min. | 85 VAC |
| Insulation voltage | 300 V |
| Input voltage nominal | 100 ... 240 VAC |
| Output voltage nominal 1 | 24 V |
| Operating temperature max. | 70 °C |
| Operating temperature min. | -40 °C |
MPN
1SVR427031R0000
