ABB 1SVR427031R2000 — General Purpose Relays

ABB CP-E 48V 1.25A 60W DIN Rail Power Supply, 1SVR427031R200

MPN1SVR427031R2000

ABB CP-E DIN Rail Power Supply, 48V 1.25A 60W Fixed, IP20, Screw Terminal, 1SVR427031R2000.

$140.20Ref. price · indicative, final on quote
ABB 1SVR427031R2000 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

1SVR427031R2000 — Identification
ParameterValue
SeriesCP-E
1SVR427031R2000 — Mechanical
ParameterValue
Width40.5 mm
Height90 mm
Depth114 mm
1SVR427031R2000 — Other specifications
ParameterValue
Outputs1
Output signalFixed
Rated power60 W
Output current 11.25 A
Output voltage 148 V
Termination typeScrew Terminal
IP ratingIP20
Input voltage max.264 VAC
Input voltage min.85 VAC
Insulation voltage300 V
Input voltage nominal100 ... 240 VAC
Output voltage nominal 148 V
Operating temperature max.70 °C
Operating temperature min.-40 °C

Product details

What this supply delivers

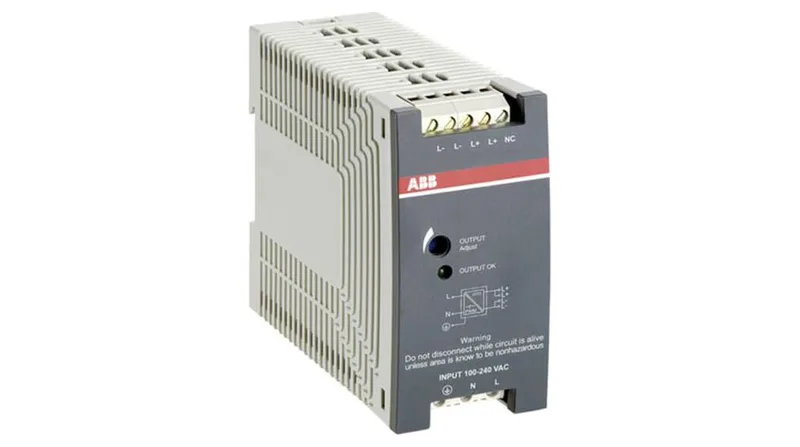

The ABB 1SVR427031R2000 is a CP-E series DIN rail power supply delivering a fixed 48 VDC at 1.25 A, rated for 60 W. It accepts 85 to 264 VAC input, covering nominal 100–240 VAC supplies globally.

Housed in a 40.5 mm wide DIN-rail enclosure (90 mm tall, 114 mm deep), it occupies a single module width on the rail — useful when panel space is tight. Termination is via screw terminals, so a standard slotted or Pozidriv driver handles wiring; no special crimp tooling required.

Frequently asked questions

What are the key output ratings of this power supply?

It delivers a fixed 48 VDC at 1.25 A, with a rated power of 60 W.

What input voltage range does it accept?

The input range is 85 to 264 VAC, with a nominal rating of 100 to 240 VAC.
