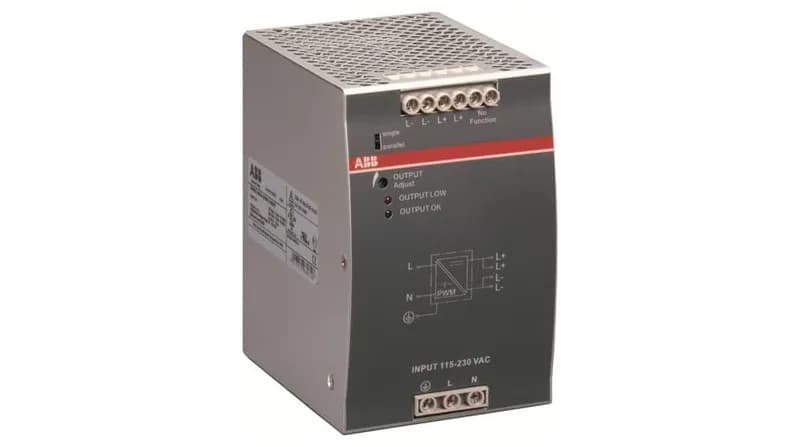

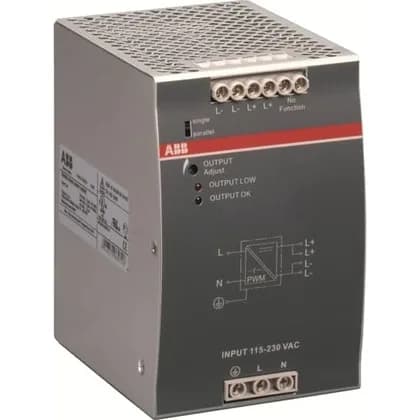

ABB 1SVR427034R2000
MPN1SVR427034R2000
ABB 1SVR427034R2000 J8 VDC 5.0 AMP|1SVR427034R2000
$138.43 – $333.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CP-E |
| Output signal | Adjustable |
| Termination type | Screw Terminal |
| Output voltage 1 | 48 V |
| Input voltage max. | 264 VAC |
| Input voltage min. | 90 VAC |
| Insulation voltage | 300 V |
| Input voltage nominal | 115 ... 230 VAC;120 ... 370 VDC |
| Output voltage nominal 1 | 48 V |
| Output current 1 | 5 A |
| Rated power | 240 W |
| Operating temperature max. | 70 °C |
| Operating temperature min. | -40 °C |
| Depth | 123.6 mm |
| Width | 83 mm |
| Height | 123.6 mm |
| Outputs | 1 |
| IP rating | IP20 |
MPN
1SVR427034R2000
