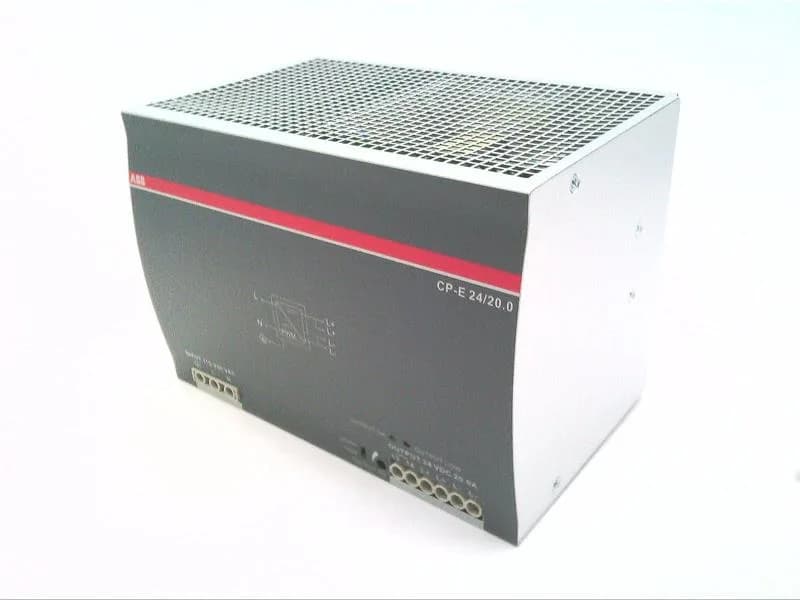

ABB CP-E Series, 1-Phase Power Supply, 480W, Adjustable Output, 20A at 24VDC, Screw Terminal, IP20.
| Parameter | Value |
|---|---|
| Series | CP-E |
| Output signal | Adjustable |
| Termination type | Screw Terminal |
| Output voltage 1 | 24 V |
| Input voltage max. | 264 VAC |
| Input voltage min. | 90 VAC |
| Insulation voltage | 300 V |
| Input voltage nominal | 115 ... 230 VAC;120 ... 370 VDC |
| Output voltage nominal 1 | 24 V |
| Output current 1 | 20 A |
| Rated power | 480 W |
| Operating temperature max. | 70 °C |
| Operating temperature min. | -40 °C |
| Depth | 123.6 mm |
| Width | 175 mm |
| Height | 123.6 mm |
| Outputs | 1 |
| IP rating | IP20 |

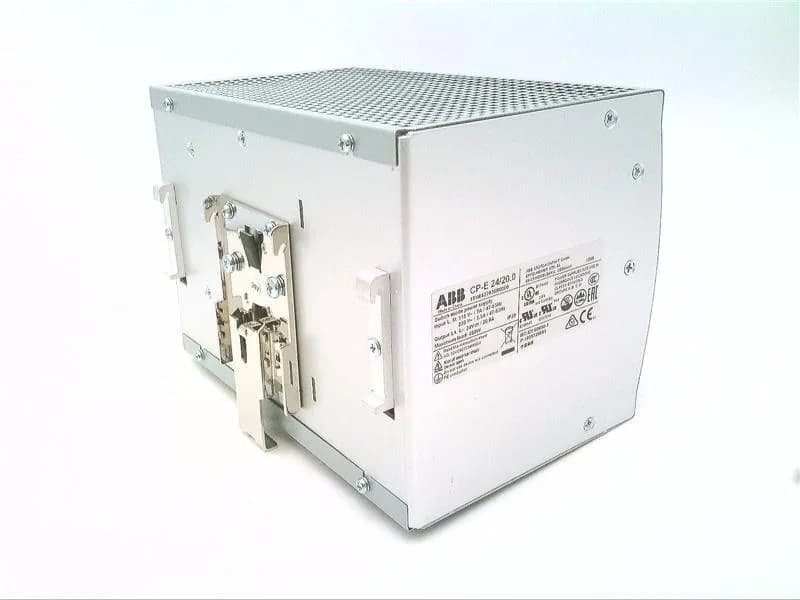

The ABB 1SVR427036R0000 is a CP-E series single-phase power supply delivering 480 W (20 A) at 24 VDC nominal, with the output adjustable via a built-in trimmer. Input accepts 90–264 VAC or 120–370 VDC, covering line voltages from 115 V to 230 V without a tap change. The screw terminals and IP20 rating suit standard control cabinet mounting on a DIN rail.
Insulation voltage 300 V; depth 123.6 mm, width 175 mm.
The depth is 123.6 mm and the width is 175 mm, both measured for DIN-rail mounting. The height is also 123.6 mm.
