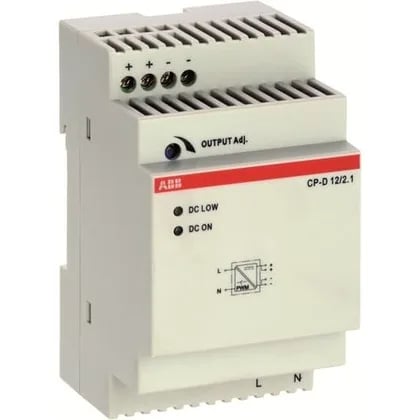

ABB 1SVR427043R1200
MPN1SVR427043R1200
Abb 1svr427043r1200 Power Supply Cp|Abb; Power Supply; Voltage Rating: Input: 90 - 264 Vac/120 - 375 Vdc, Output: 12vdc; Amperage Rating: Input: 502 Milamp At 115 Vac, 277 Milamp At 230 Vac, Output: 2.1 Amp At Less Than Or Equal To 60 Deg C; Wattage: 30 Wtt; Frequency Rating:47 - 63 Hz; Phase: 1 Ph; Fuse Rating: 2 Amp At 250 Vac Slow Acting; Material: Plastic Housing; Efficiency: 82 Pct; Insulation: Rated Insulation Voltage Ui: Input/output - 3 Kvac; Cable Size: Fine Strand With Wire End Ferrule
$124.50Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CP-D |
| Output signal | Fixed |
| Termination type | Screw Terminal |
| Output voltage 1 | 12 V |
| Input voltage max. | 264 V |
| Input voltage min. | 90 V |
| Insulation voltage | 300 V |
| Input voltage nominal | 100 ... 240 VAC;120 ... 370 VDC |
| Output voltage nominal 1 | 12 V |
| Output current 1 | 2.1 A |
| Rated power | 25 W |
| Operating temperature max. | 70 °C |
| Operating temperature min. | -40 °C |
| Depth | 57.5 mm |
| Width | 53 mm |
| Height | 91 mm |
| Outputs | 1 |
| IP rating | IP20 |
MPN
1SVR427043R1200
