The ABB 1SVR427056R0000 is a 480W DIN-rail power supply from the CP-T series, delivering 24VDC at 20A from a three-phase input. Input range covers 340–575 VAC three-phase and 480–820 VDC, with a nominal of 400–500 VAC. Output is adjustable and rated for continuous 20A at 24VDC. Rated for -30 to 70°C operating ambient, IP20 protection. Screw terminals, 500V insulation voltage.

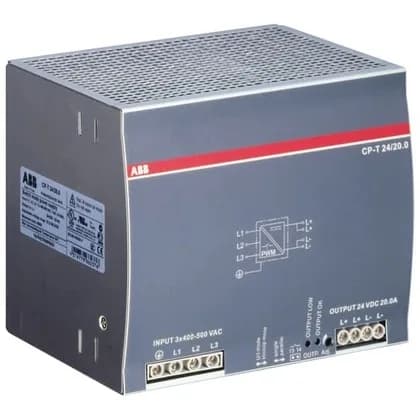

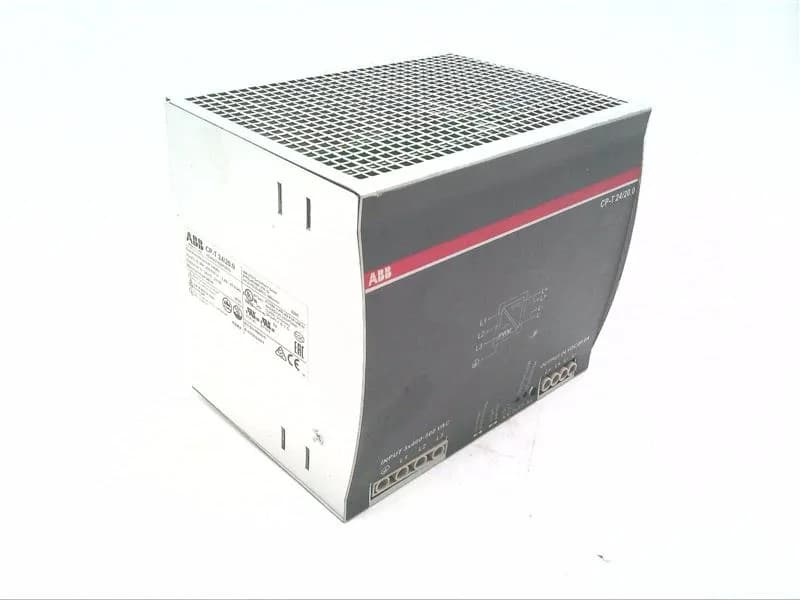

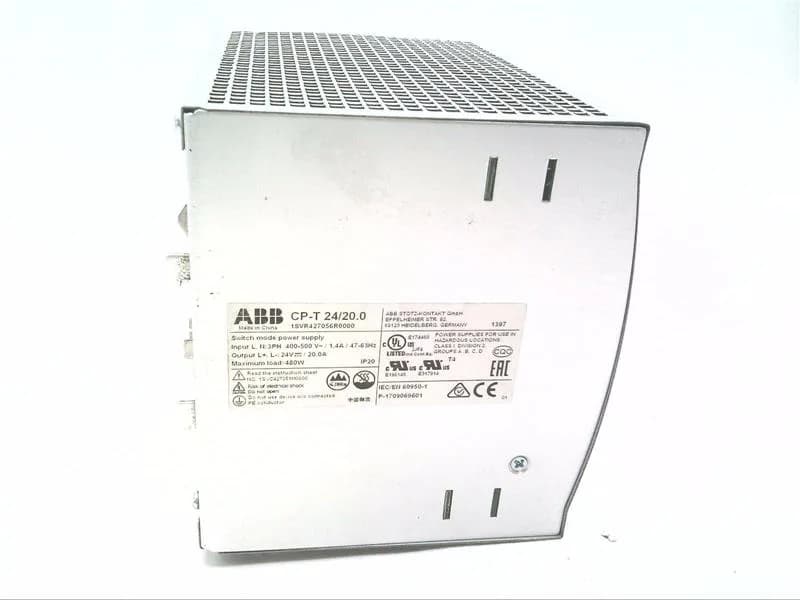

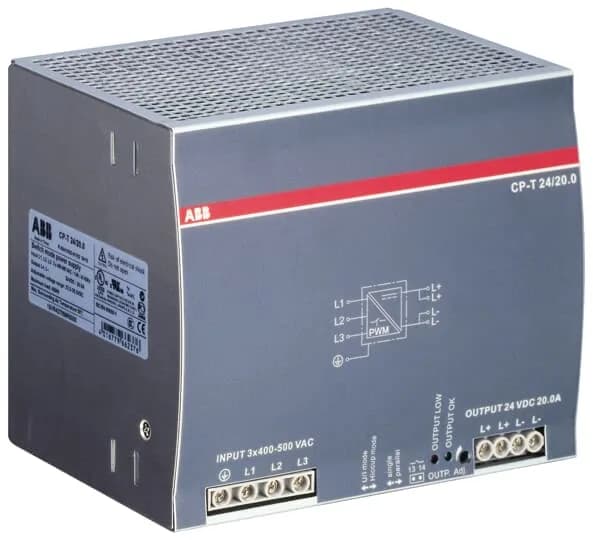

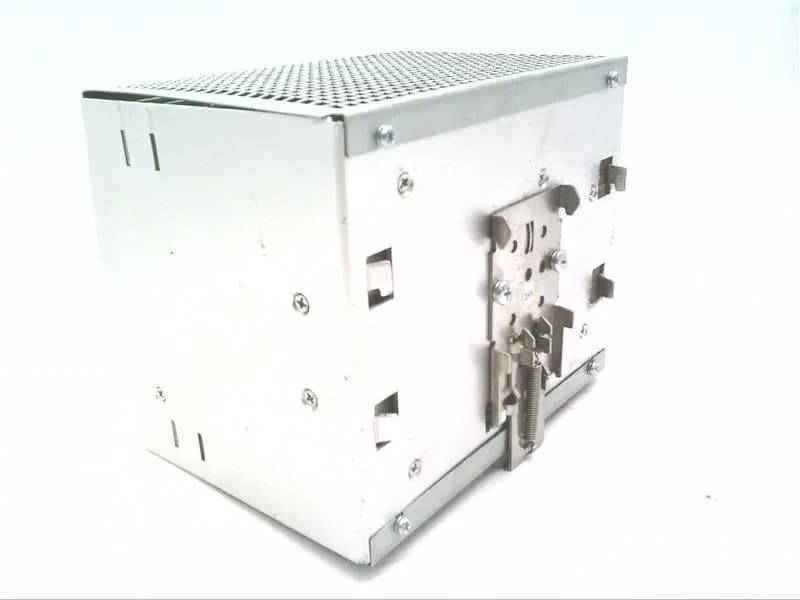

ABB 1SVR427056R0000 CP-T Power Supply, 480W 24VDC 20A
MPN1SVR427056R0000
ABB CP-T Series power supply, 480W, 24VDC, 20A, 3-phase input, screw terminals.
$167.64 – $431.02Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | CP-T |
| Output signal | Adjustable |
| Termination type | Screw Terminal |
| Output voltage 1 | 24 V |
| Input voltage max. | 575 V |
| Input voltage min. | 340 V |
| Insulation voltage | 500 V |
| Input voltage nominal | 400 ... 500 VAC;480 ... 820 VDC |
| Output voltage nominal 1 | 24 V |
| Output current 1 | 20 A |
| Rated power | 480 W |
| Operating temperature max. | 70 °C |
| Operating temperature min. | -30 °C |
| Depth | 119 mm |
| Width | 150 mm |
| Height | 131 mm |
| Outputs | 1 |
| IP rating | IP20 |
Product details
Frequently asked questions
What are the key dimensions of the 1SVR427056R0000?
Width 150 mm, height 131 mm, depth 119 mm. Standard DIN-rail footprint for the CP-T series.
What input voltage range does the 1SVR427056R0000 accept?
Three-phase AC 340–575 VAC or DC 480–820 VDC; nominal is 400–500 VAC. Handles worldwide line voltages within that band.
