ABB CP-T series power supply, order code 1SVR427057R0000. 960 W nominal output at 24 VDC, delivering 40 A continuous. Three-phase input accepts 400-500 VAC or 480-820 VDC. Output voltage is adjustable, allowing compensation for voltage drop on longer DC runs to the load. Packaged in a 121 x 276 x 131 mm housing with screw terminals and IP20 protection.

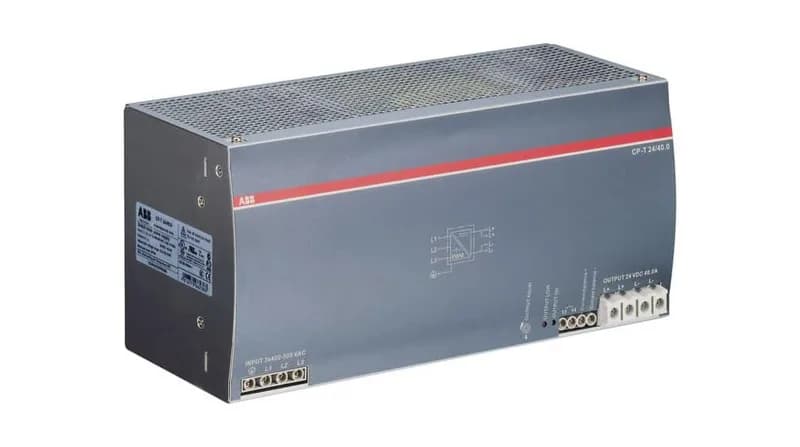

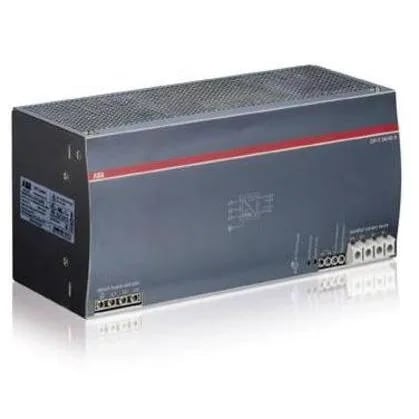

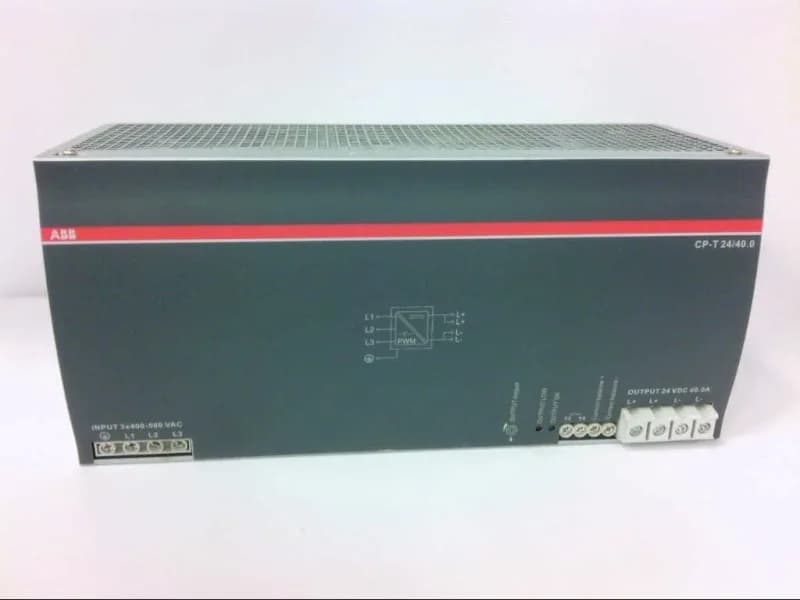

ABB CP-T 1SVR427057R0000 960W 24V 40A Power Supply
MPN1SVR427057R0000
ABB CP-T Series, Power Supply, 960 W, 24 VDC, 40 A, 3-Phase Input 400-500 VAC.
$647.87 – $1,257.07Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CP-T |
| Output signal | Adjustable |
| Termination type | Screw Terminal |
| Output voltage 1 | 24 V |
| Input voltage max. | 575 V |
| Input voltage min. | 340 V |
| Insulation voltage | 500 V |
| Input voltage nominal | 400 ... 500 VAC;480 ... 820 VDC |
| Output voltage nominal 1 | 24 V |
| Output current 1 | 40 A |
| Rated power | 960 W |
| Operating temperature max. | 70 °C |
| Operating temperature min. | -40 °C |
| Depth | 121 mm |
| Width | 276 mm |
| Height | 131 mm |
| Outputs | 1 |
| IP rating | IP20 |
Product details
Frequently asked questions
What are the key ratings of this power supply?
960 W output power, 40 A at 24 VDC, three-phase input 400-500 VAC or 480-820 VDC. Output voltage is adjustable.
MPN
1SVR427057R0000
