ABB 1SVR430896R0000

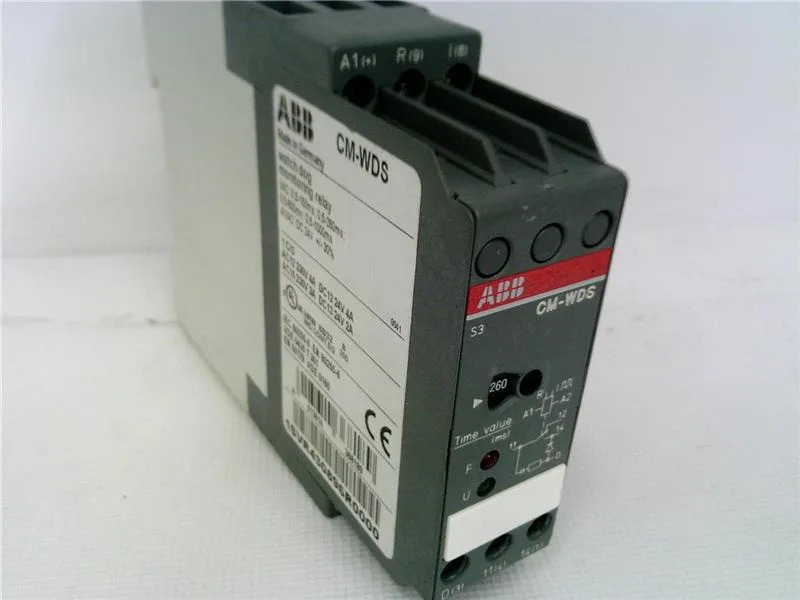

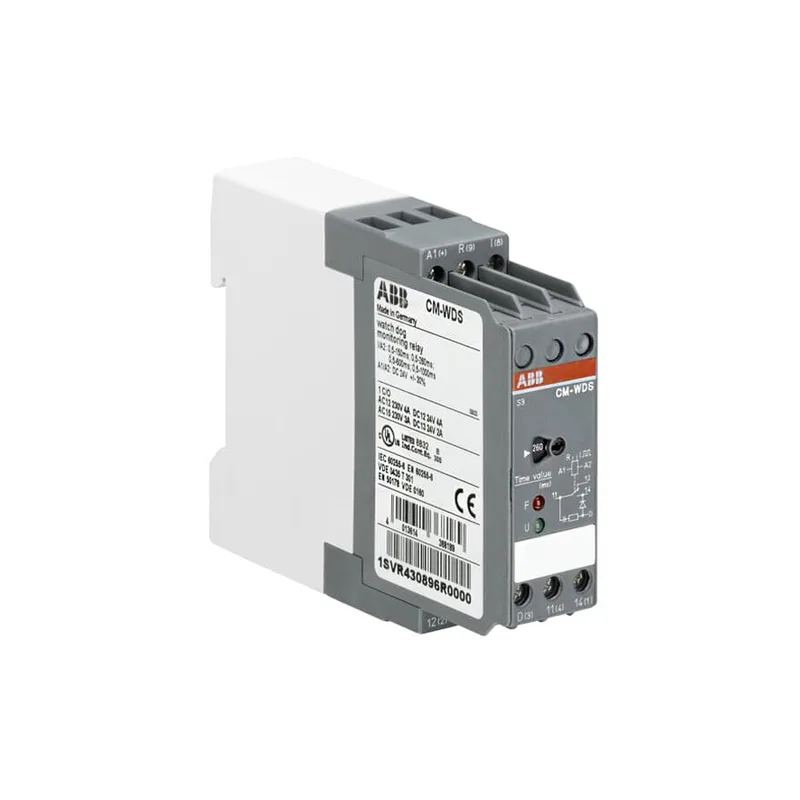

ABB 1SVR430896R0000 CM-WDS Cycle Monitoring Relay, 24 V DC

MPN 1SVR430896R0000

ABB 1SVR430896R0000, CM-WDS cycle monitoring relay, 1 c/o (SPDT) contact, 24 V DC control supply, measuring range 0.5–1000 ms, screw terminals.

$224.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1SVR430896R0000 specifications
ParameterValue
Product typeCM-WDS Cycle monitoring relay
Terminal typeScrew Terminal
Measuring range0.5 ... 1000 ms
Weight0.163 Kg

Product details

What the CM-WDS monitors and how it fits

The ABB 1SVR430896R0000 is a CM-WDS cycle monitoring relay that detects pulse trains, missing pulses, or frequency deviations in a 24 V DC signal. It is specified for applications where a machine or process must confirm a repeating event — for example, a rotating shaft, a conveyor index, or a timed cycle — and trigger an alarm or shutdown if the cycle stops or drifts outside the set window. The measuring range spans 0.5 to 1000 ms, covering fast sensor pulses up to slow process cycles. The relay output is a single-pole double-throw (SPDT) contact rated for general-purpose switching.

Control supply and terminal wiring
