ABB 1SVR440713R0300 — General Purpose Relays

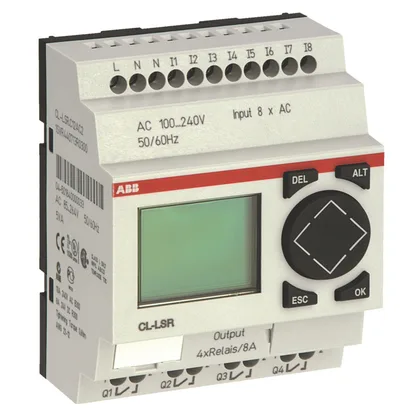

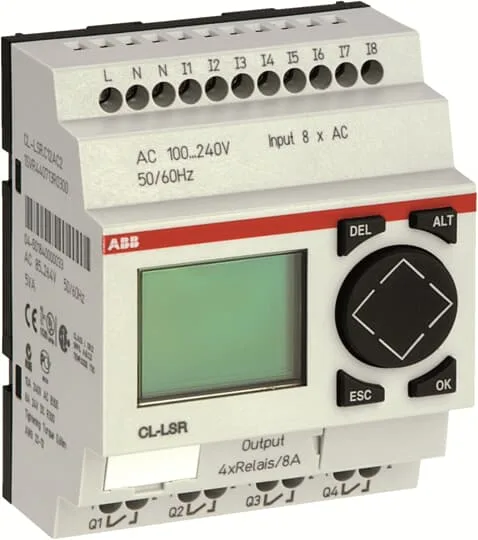

ABB 1SVR440713R0300 CL-LSR.C12AC2 Logic Relay, 100-240 V AC

MPN1SVR440713R0300

ABB 1SVR440713R0300, CL-LSR.C12AC2 logic relay, 8 digital inputs / 4 relay outputs, 100-240 V AC, 0.2 kg.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

1SVR440713R0300 — Specifications
ParameterValue
Weight0.2 Kg
Product typeCL-LSR.C12AC2 Logic relay
Dimension (lxwxh)5.8 x 7.15 x 9.0 cm
Voltage100 ... 240 V AC
Number of digital in (Outputs)8 Digital Inputs / 4 Relay Outputs

Product details

The ABB 1SVR440713R0300 is a CL-LSR.C12AC2 logic relay — a compact programmable controller for small automation tasks that don't justify a full PLC. It runs on 100... 240 V AC supply and provides 8 digital inputs plus 4 relay outputs for switching loads up to the relay contact ratings.

The housing measures 5.8 x 7.15 x 9.0 cm and snaps onto DIN rail in a control panel. The 8 inputs handle dry contacts or 24 V DC sensors; the 4 relay outputs drive contactors, solenoid valves, or indicator lamps directly. For a small machine cell or conveyor section, this replaces a handful of individual timers and relays with one programmed unit.

MPN
1SVR440713R0300
