ABB 1SVR440721R0300 — General Purpose Relays

ABB 1SVR440721R0300 CL-LMR.C18DC2 Logic Relay, 24 V DC, 12 D

MPN1SVR440721R0300

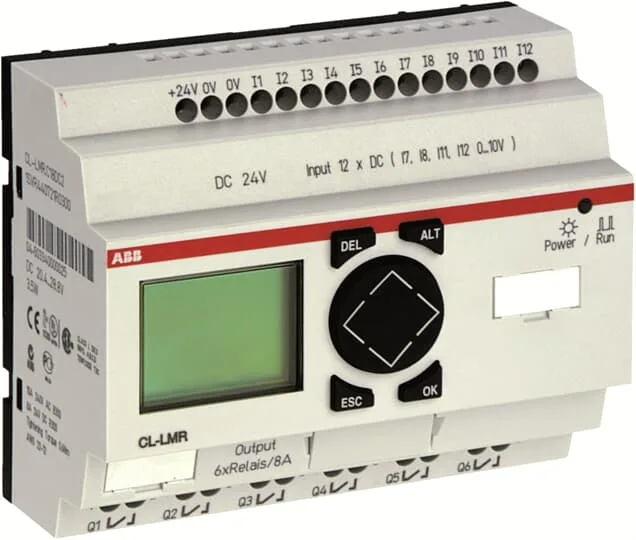

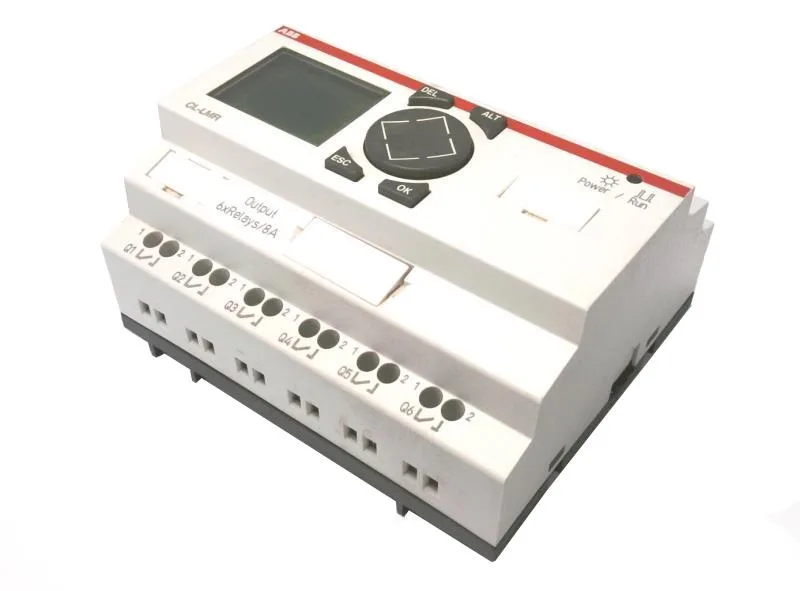

ABB 1SVR440721R0300 CL-LMR.C18DC2 Logic relay, 24 V DC, 12 digital inputs / 6 relay outputs, DIN-rail mount.

$762.00 – $945.00Ref. price · indicative, final on quote
ABB 1SVR440721R0300 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1SVR440721R0300 — Mechanical
ParameterValue
Mounting typeDIN-rail
1SVR440721R0300 — Other specifications
ParameterValue
Weight0.360 Kg
Product typeCL-LMR.C18DC2 Logic relay
Dimension (lxwxh)5.8 x 10.75 x 9.0 cm
Number of input channels12
Voltage24 V DC
Number of digital in (Outputs)12 Digital Inputs / 6 Relay Outputs

Product details

The ABB 1SVR440721R0300 is a CL-LMR.C18DC2 logic relay — a compact programmable controller for small automation tasks that don't justify a full PLC.

The 12 digital inputs handle sensor or switch signals at 24 V DC, which is the standard control voltage for industrial panels. The 6 relay outputs give you isolated dry contacts for driving contactors, solenoid valves, or indicator lamps — no need for external interposing relays on smaller loads. The 24 V DC supply rail is shared with the input side, so one panel power supply feeds both the logic and the field wiring.

Frequently asked questions

What is the closest alternative to this logic relay in the same family?

The CL-LMR series includes variants with different I/O counts and supply voltages. The 1SVR440721R0300 is the 24 V DC version with 12 inputs and 6 relay outputs. A sibling with a different I/O mix or AC supply would require a different order code — no direct pin-compatible drop-in exists without checking the specific I/O and voltage requirements.
