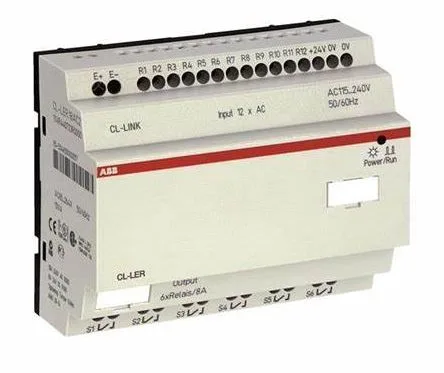

ABB CL-LER.18AC2 expansion for logic relays, 12 digital inputs / 6 relay outputs, 100...240 V AC, 50/60 Hz, 0.260 kg.
| Parameter | Value |
|---|---|
| Weight | 0.260 Kg |
| Product type | CL-LER.18AC2 Expansion for logic relays |
| Rated frequency | 50/60 Hz |
| Dimension (lxwxh) | 5.8 x 10.75 x 9.0 cm |
| Voltage | 100 ... 240 V AC |
| Number of digital in (Outputs) | 12 Digital Inputs / 6 Relay Outputs |
| Rated operational voltage tolerance | -15...+10 % |
The 1SVR440723R0000: The 12 digital inputs are typically 24 VDC sink/source, configurable through the base-unit programming. The 6 relay outputs are form-A (SPST-NO) contacts rated for general-purpose switching up to the base-unit's specified current. The 100...240 V AC supply powers the module's internal logic and output coils; no separate 24 VDC bus is needed for the expansion itself.
It provides 12 digital inputs and 6 relay outputs, as specified by the product type CL-LER.18AC2.
It operates on 100...240 V AC at 50/60 Hz, with a tolerance of -15% to +10% on the nominal voltage.
It is sourced to order through independent distribution. Submit an RFQ for current pricing and availability; the part is not stocked on a speculative basis.
Dimensions are 5.8 x 10.75 x 9.0 cm (LxWxH), and the unit weight is 0.260 kg. Shipping weight including packaging is 1.5 kg.
