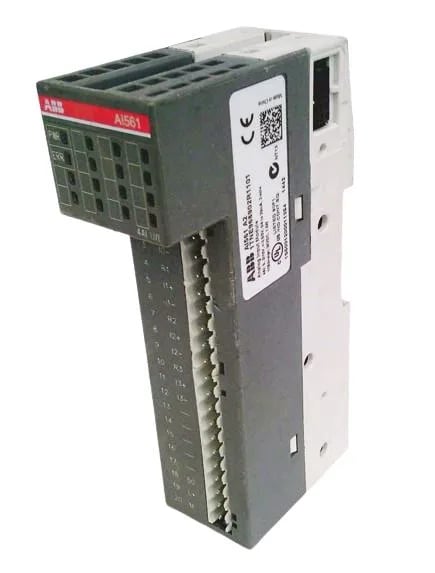

ABB 1TNE968902R1101

ABB 1TNE968902R1101 AI561 Analog Input Module, 4 AI, U/I, 12

MPN 1TNE968902R1101
Active

ABB AI561 series, analog input module, 4 AI: U, I (AI561), 12-bit resolution, pluggable terminal connection, IP20 housing.

$166.88 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1TNE968902R1101 specifications
ParameterValue
IP ratingIP20
Temp operating max60 °C
Temp operating min0 °C
ResolutionAnalog Input 12 bit

Product details

Part overview and fit

The ABB AI561 (1TNE968902R1101) is a 4-channel analog input module accepting voltage or current signals, with 12-bit resolution. Pluggable screw terminals keep field wiring changes clean. The IP20 housing suits clean, dry cabinet environments. Operating range is 0 to +60 °C ambient, no derating requirement noted within that band. If your cabinet runs hotter than 60 °C, this module needs forced air or a cooler location.

Pluggable terminal blocks — pull the connector, land sensor wires, then push back onto the module. Saves time during panel build or swap-out. No backplane wiring to disturb. IP20 housing means no protection against moisture or dust ingress inside the enclosure. Mount only in a cabinet rated IP54 or better. Ambient operating limits 0–60 °C cover most control rooms; avoid placing directly above a heat source like a transformer or VFD.

MPN
1TNE968902R1101
