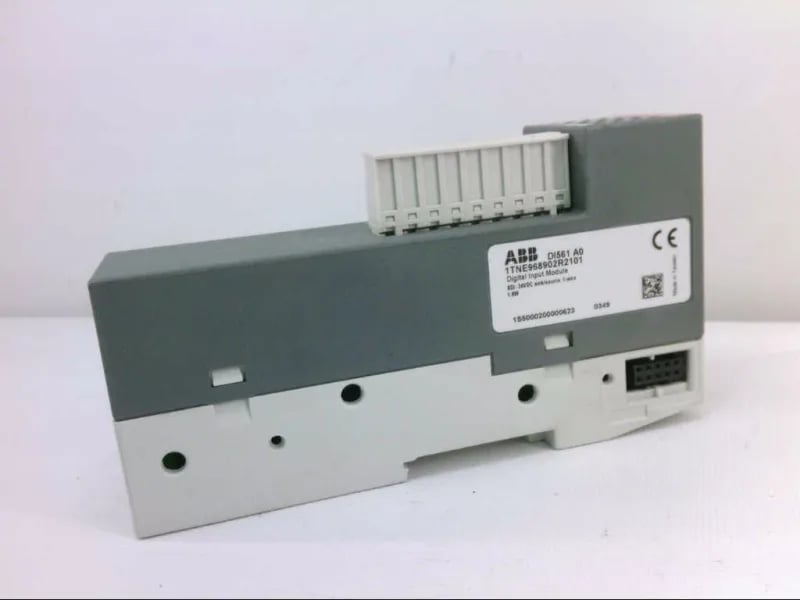

ABB 1TNE968902R2101

ABB 1TNE968902R2101 DI561, 8 DI AC/DC sink, IP20

MPN1TNE968902R2101
Active

ABB AC500 distributed I/O digital input module, DI561, 1TNE968902R2101, 8 sinking digital inputs, AC/DC to 30 V, IP20, pluggable terminals.

$128.85Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026

Specifications

1TNE968902R2101 specifications
ParameterValue
Connection typePluggable
Input voltage typeAC/DC
Additional information (Product main type)DI561
Maximum input voltage0 ... 30 V
Input current5 mA
IP ratingIP20
Certificates and declarations (REACH date)20241206
Certificates and declarations (REACH information)True - contains substances > 0.1 mass percentage
CN885371091
Function8 DI sink/
Delay time (τ)8 ... 8 ms
Ambient air temperatureOperation 0 ... +60 °C
Number of digital inputs8
Certificates and declarations (SCIP)5a3202be-f73e-4c01-b03e-ba04dd3647e7 China
Number of digital configurable i (Os)0

Product details

The slice and what it actually does

The 1TNE968902R2101: Each input draws 5 mA, which feeds back into the field supply budget when wiring the cabinet.

Input envelope and the 8 ms filter

The maximum input voltage is 0... 30 V, covering the AC/DC sources the DI561 is specified against. The delay time (τ) is 8... 8 ms — a fixed 8 ms input filter on every channel, which reads contactor coil feedback and proximity switches cleanly but is not the part to pick for sub-millisecond edge counting.

Cabinet-side: terminals, IP, and thermal envelope

Field wiring is pluggable, so a swap does not require re-stripping conductors — unclip the connector, move it to the replacement, and the cabinet is back. The housing is rated IP20, standard for DIN-rail slices inside an enclosed panel. Operating ambient is 0... +60 °C, so the usual panel-internal derating practice applies at the upper end of that window.

Compliance pack

ABB documents this part under EU Directive 2011/65/EU with Amendment 2015/863 of 22 July 2019 for RoHS, and flags REACH Declaration information as True — contains substances above the 0.1 % mass percentage threshold, with a REACH date of 20241206. The SCIP dossier reference is 5a3202be-f73e-4c01-b03e-ba04dd3647e7 for China. WEEE classification is Category 5, small equipment with no external dimension above 50 cm, B2B channel.

Sourcing posture

No official successor code is on file here, which keeps the DI561 as the standing reference for the eight-point AC/DC sinking slot until ABB publishes a replacement.

Frequently asked questions

What CN8 / customs classification is listed for 1TNE968902R2101?

CN8 is 85371091.

What function does 1TNE968902R2101 perform on the PLC expansion line?

It is an 8 DI sink/ digital input module, product main type DI561.

Will 1TNE968902R2101 drop into a panel specified around 1TNE968902R2302?

Not directly. The DX571 (1TNE968902R2302) carries eight relay outputs in addition to the eight inputs, so a swap changes the I/O mix on the slice. Both share the AC500 distributed I/O footprint and pluggable terminals, but the panel-side wiring and the application tag list need to be reworked before the DI561 can take a DX571 slot.

What compliance documentation does ABB provide for 1TNE968902R2101?

ABB declares RoHS conformity under EU Directive 2011/65/EU with Amendment 2015/863 of 22 July 2019 and flags REACH Declaration as True above the 0.1 % mass threshold, with a REACH date of 20241206. The SCIP dossier reference is 5a3202be-f73e-4c01-b03e-ba04dd3647e7, and the WEEE class is Category 5 small equipment, B2B.
