What you're slotting into the panel

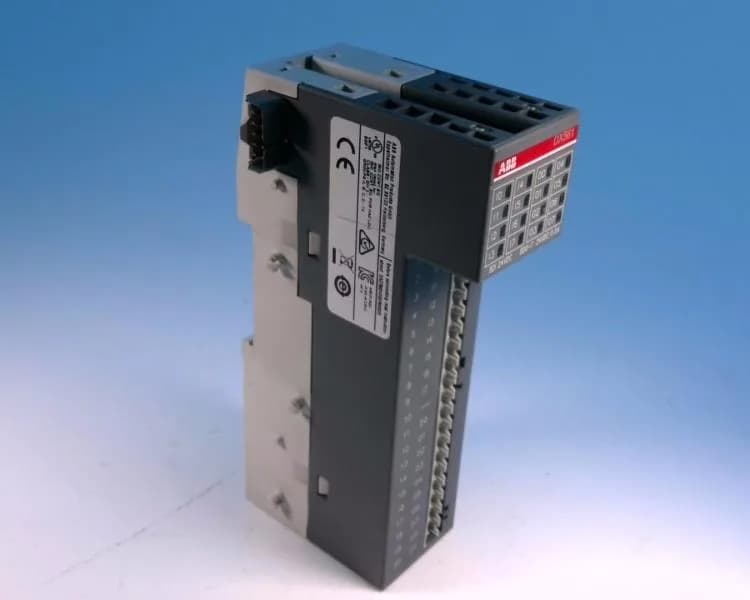

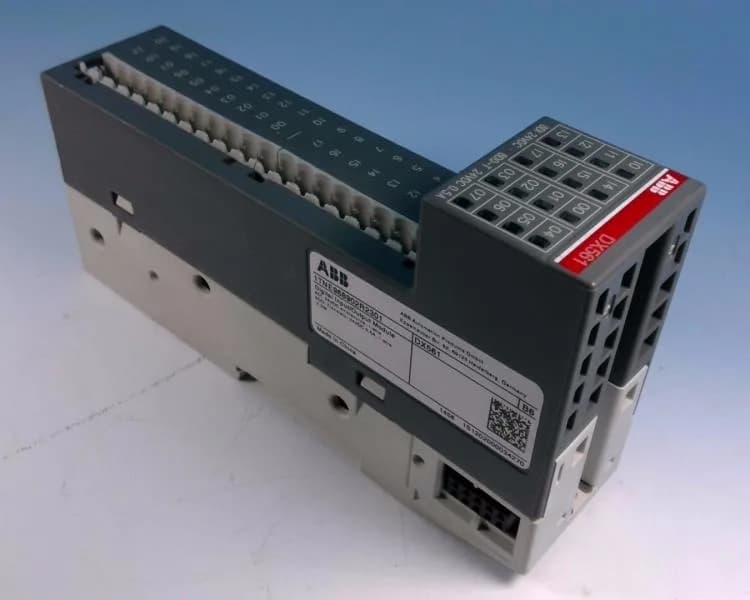

The ABB 1TNE968902R2301 is a distributed automation I/O module, product main type DX561: 8 sink-type digital inputs paired with 8 transistor digital outputs, sold as a pluggable expansion module. Outputs are transistor type at 24 VDC rated 0.5 A per channel, with the supply rail accepted across 20.4... 28.8 V DC — so the module drops onto a normal 24 VDC plant supply without a separate converter. Inputs draw 5 mA and accept a 0... 30 V input voltage envelope, and the on/off delay time is listed at 8... 8 ms — the scan-budget line item to keep on the integrator's spreadsheet.
Transistor vs relay at the same 8/8 count
The closest functional sibling in the same distributed I/O line is 1TNE968902R2302 (DX571): same 8 DI / 8 DO footprint, same 8 ms delay and 20.4–28.8 VDC supply, but the outputs are electromechanical relays rated 2 A across 24–230 V AC/DC. Choose 1TNE968902R2301 when every downstream load is 24 VDC and you want the longer switching life of a transistor; pick the DX571 when the panel must drive 120 VAC coils, indicator lamps, or mixed-voltage loads — they are not drop-in for each other because the output device type and the per-channel current differ (0.5 A vs 2 A).
Compliance and decl pack
ABB documents the module under EU Directive 2011/65/EU with Amendment 2015/863 (RoHS), carries a REACH declaration dated 20241206 with a 'contains substances > 0.1 mass percentage' note, and a SCIP dossier filed for Germany (d489bfe7-acff-4b7d-88d2-f7897895db34) — the usual decl-pack the quality file will ask for. Mechanically it is IP20, pluggable, and WEEE Category 5 (small equipment, no external dimension above 50 cm), B2B stream — meaning end-of-life handling routes through the ABB take-back channel rather than municipal collection. Operating air temperature is 0... +60 °C, so it sits comfortably inside an enclosed cabinet without extra derating beyond the normal thermal curve.
