ABB DX571 Digital I/O Module, 1TNE968902R2302, 8 DI sink / 8 DO relay 120..240VAC 2A.
| Parameter | Value |
|---|---|
| Connection type | Pluggable |
| Input voltage type | AC/DC |
| Output voltage type | AC |
| Additional information (Product main type) | DX571 |
| Supply voltage | 20.4 ... 28.8 V DC |
| Maximum input voltage | 0 ... 30 V |
| Output voltage | 24...230 V |
| Output voltage maximum | 195.5 ... 276 V |
| Input current | 5 mA |
| Output current | 2 A |
| IP rating | IP20 |
| Certificates and declarations (REACH date) | 20241206 |
| Parameter | Value |
|---|---|
| Certificates and declarations (REACH information) | True - contains substances > 0.1 mass percentage |
| CN8 | 85371091 |
| Output | Relay |
| Function | 8 DI sink/ 8 DO relay: 120..240VAC 2A |
| Delay time (τ) | 8 ... 8 ms |
| Ambient air temperature | Operation 0 ... +60 °C |
| Number of digital inputs | 8 |
| Number of digital outputs | 8 |
| Certificates and declarations (SCIP) | fcf81398-6142-481c-8bff-736b95ecf10f Germany |
| Number of digital configurable i (Os) | 0 |

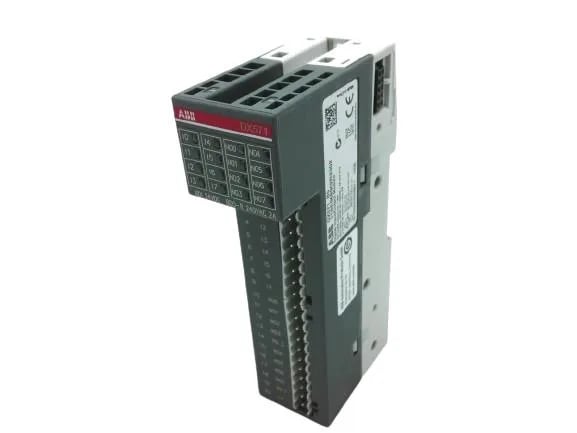

The ABB 1TNE968902R2302 (DX571) is a distributed I/O module providing 8 digital inputs and 8 relay outputs rated for 120..240 VAC at 2 A. It operates on a 20.4…28.8 VDC supply, with inputs sinking 5 mA. Connection is via pluggable terminals, and the enclosure carries IP20 protection for cabinet-mount applications.
This module is obsolete; ABB no longer manufactures it.
The CN8 tariff code is 85371091.
It provides 8 relay outputs rated for 120..240 VAC at 2 A.
