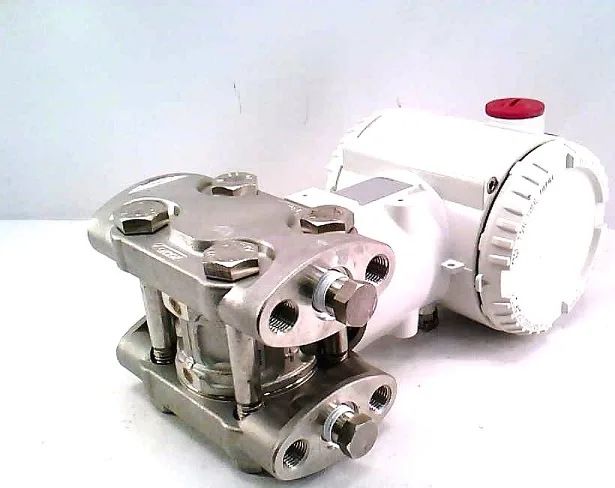

ABB 266DSH HSSA1B1LIB2 — Differential Pressure Transmitters

ABB 266DSH HSSA1B1LIB2

MPN266DSH HSSA1B1LIB2

Differential Pressure Transmitter

$1,398.00Ref. price · indicative, final on quote
ABB 266DSH HSSA1B1LIB2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

266DSH HSSA1B1LIB2 — Identification
ParameterValue
Model266DSH
Product typeDifferential Pressure Transmitter
266DSH HSSA1B1LIB2 — Measurement
ParameterValue
Sensor span limitsH1.6 and 160 kPa16 and 1600 mbar6.4 and 642 inH2O
ApplicationS = Differential measurement at standard static pressure
266DSH HSSA1B1LIB2 — Electrical & Output
ParameterValue
Output / additional options1 = HART and 4 to 20 mA - Advanced functionality
Integral LCD displayLI = Digital LCD integral display with integrated keypad
266DSH HSSA1B1LIB2 — Process Connection
ParameterValue
Process flanges/adapters material & connection (wetted)AAISI 316 L ss (Horizontal connection)1/4 in. – 18 NPT-f direct
266DSH HSSA1B1LIB2 — Materials
ParameterValue
Diaphragm material / fill fluid (wetted)SAISI 316 L ssSilicone oil
Housing material & electrical connectionBAluminium alloy ( barrel version)M20 x 1.5 (CM 20)
Bolts/gasket material (wetted)1For standard static : AISI 316 ssGauge versions : Viton®
266DSH HSSA1B1LIB2 — Mechanical
ParameterValue
Mounting bracket (shape & material)B2 = For pipe/wall mounting - AISI 316 L ss
266DSH HSSA1B1LIB2 — Other specifications
ParameterValue
Gauge versionsViton®
For standard staticAISI 316 ss
MPN
266DSH HSSA1B1LIB2
