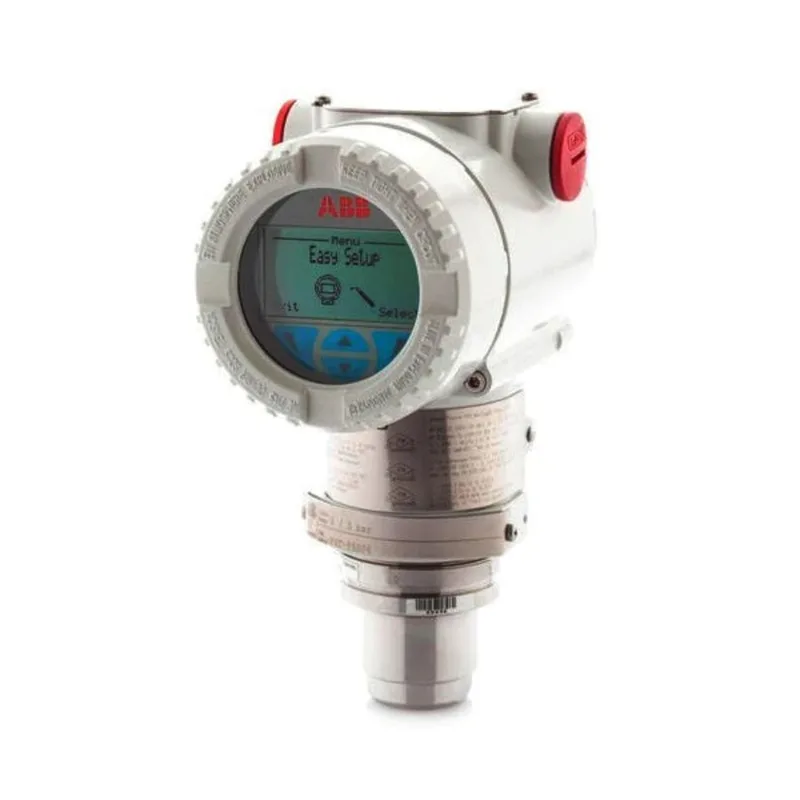

ABB 266HSHPSBA1-L5B1I2H4
MPN266HSHPSBA1-L5B1I2H4
Gauge Pressure Transmitter
$1,303.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Gauge Pressure Transmitter |
| B1 - mounting bracket (shape and material) | For pipe/wall mounting - Carbon steel |
| B - process connection (wetted parts) | AISI 316L ss, 1/2 in. - 14 NPT female, NACE |
| A - housing material and electrical connection | Aluminium alloy (barrel version), 1/2 in. - 14 NPT |
| Shipping weight | 8 kg |
| H4 - material traceability | Test report EN 10204–2.2 of pressure bearing and process wetted parts (not for gaskets) |
| S - diaphragm material (Fill fluid (wetted parts)) | AISI 316L SST (1.4435) Silicone oil, NACE |
| Manufacturer | ABB |
| 266HSH - model | Gauge Pressure Transmitter – BASE ACCURACY 0.06 % |
| L5 - integral LCD | Digital LCD integral display with TTG (Through-The-Glass) activated keypad |
| Estimated lead time | 8 - 10 Weeks. |
| P - sensor span limits | 24 and 2400 kPa, 0.24 and 24 bar, 3.5 and 348 psi |
| I2 - additional tag plate | Tag and certification stainless steel plates (laser printed) |
| 1 - Output/Additional options | HART and 4 to 20 mA – Advanced functionality (includes option R1) |
