2CCF004151R0001 - ABB
MPN2CCF004151R0001

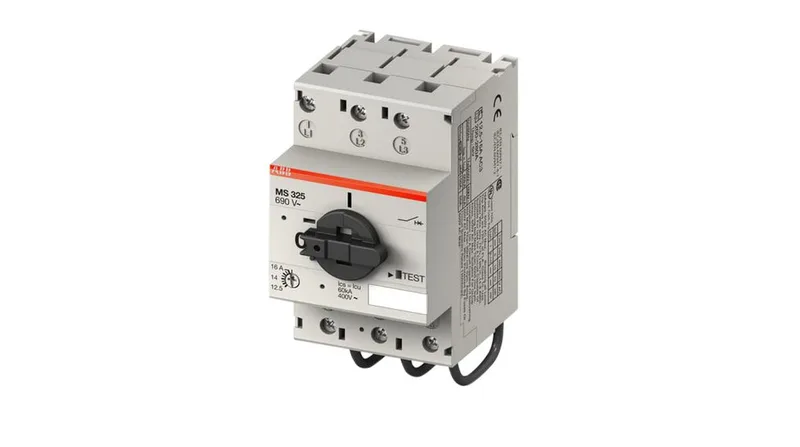

Motor Protection Circuit Breaker, 1A, 400V
$31.69 – $35.22Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Width | 94.5 mm |
| Height | 90 mm |
| Depth | 54 mm |
| Parameter | Value |
|---|---|
| Poles | 3 |
| Tripping class | Class 10 |
| IP rating | IP 20 |
| Overload release max. | 1 A |
| Overload release min. | 630 mA |
| Rated operating current | 1 |
| Service life, mechanical | 100 000 cycles |
| Operating temperature max. | 50 °C |
| Operating temperature min. | -25 °C |
| Cross-section, flexible max. | 6 mm² |
| Cross-section, flexible min. | 0.75 mm² |
| Rated operating voltage max. | 400 V |
MPN
2CCF004151R0001
