ABB 2CDS251103R0024 — 2-Pole MCB (DIN Rail)

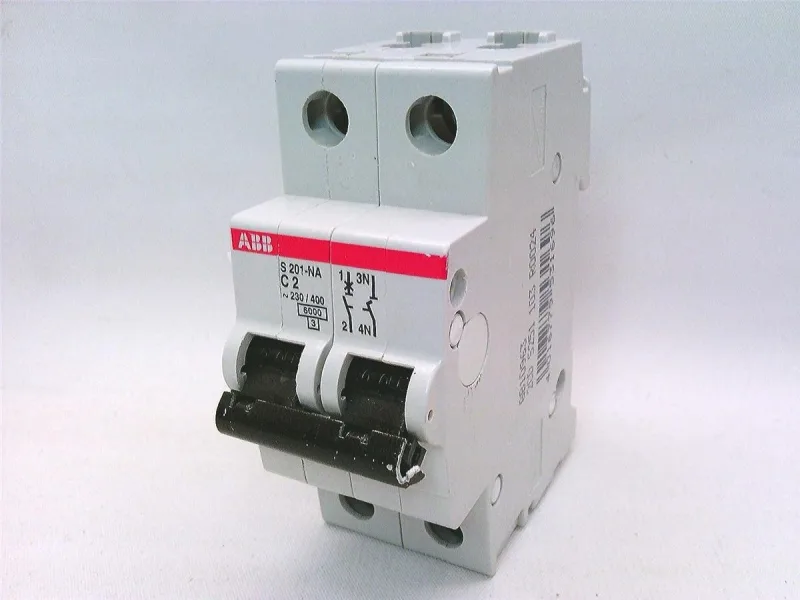

ABB 2CDS251103R0024 S200 Series MCB, C-Curve 2A 2-Pole, 6kA

MPN2CDS251103R0024

ABB S200 series miniature circuit breaker, 2CDS251103R0024, C-curve, 2 A, 2-pole, 440 V, 6 kA Icn, DIN-rail mount, IP20/IP40.

$12.04Ref. price · indicative, final on quote
ABB 2CDS251103R0024 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

2CDS251103R0024 — Protection
ParameterValue
Overvoltage categoryIII
2CDS251103R0024 — Mechanical
ParameterValue
Width35 mm
Height88 mm
Depth69 mm
2CDS251103R0024 — Other specifications
ParameterValue
Poles2
IP ratingIP20;IP40
MountingDIN Rail Mount
Current2 A
Terminal contact typeBi-Directional Cylinder Lift
Voltage440 V
Tripping characteristicsC
Tightening torque - Screw-Type max.2.8 Nm
Rated Short-Circuit breaking capacity icn6 kA
Rated Short-Circuit breaking capacity icu20 kA

Product details

Rated insulation voltage is 440 V, and the short-circuit breaking capacity is 6 kA (Icn), with an ultimate breaking capacity Icu of 20 kA.

DIN-rail mount, 2-pole width of 35 mm, depth 69 mm, height 88 mm. The IP20 enclosure (front) and IP40 (terminal side) suit installation in a dead-front panel.

C-curve (tripping characteristic C) means the magnetic trip operates at 5 to 10 times In (10 A to 20 A for this 2 A unit). That's the standard choice for moderate inrush loads — small motors, contactor coils, control transformers — where a B-curve would trip on energization but a D-curve would be too slow for cable protection. Overvoltage category III (OVC III) — the breaker is rated for fixed-installation distribution boards where transient overvoltages are higher than at the load side. The 440 V rated insulation voltage (Ui) covers common 400/415 V three-phase networks with margin.

Frequently asked questions

Will 2CDS251103R0024 drop into a panel that was specified around S202M-C16 without rewiring?

Not directly — the S202M-C16 is a 16 A, 2-pole, C-curve MCB on the same DIN-rail footprint, but the 2 A rating of the 2CDS251103R0024 is a different current level. Physical interchange is possible (same pole count, same mounting), but the circuit protection rating must match the load and cable size; the panel's coordination study would need revisiting.
