ABB 2CDS252001R0325

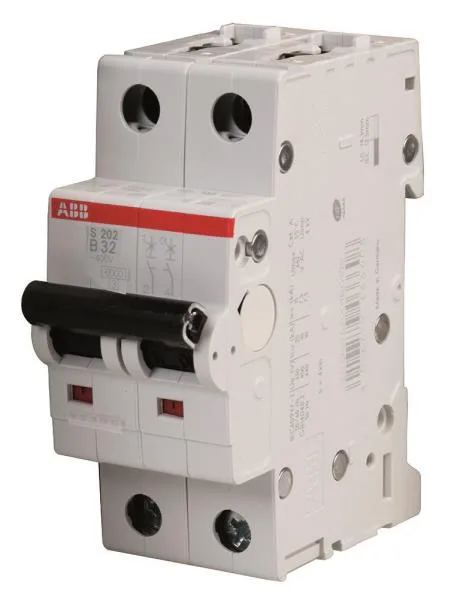

ABB 2CDS252001R0325 MCB, B Curve 32A 2P, 6kA Icn

MPN 2CDS252001R0325

ABB System Pro M Compact miniature circuit breaker, B characteristic, 32 A rated current, 2 poles, 440 V insulated, IP20/IP40.

$10.67 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

2CDS252001R0325 specifications
ParameterValue
Insulation voltage ui440 V
Current32 A
Poles2
IP ratingIP20 / IP40
MountingDIN Rail
Depth69 mm
Width35 mm
Height88 mm

Product details

What this B‑curve 32 A 2‑pole MCB does for a panel

The 2CDS252001R0325: A 32 A B‑curve MCB from the System Pro M Compact family. Two poles, so it switches both line and neutral in single‑phase sub‑circuits. The 6 kA Icn (service) breaking capacity is the figure that determines coordination with the upstream device; the 20 kA Icu (ultimate) confirms the device can clear a through‑fault once without damage, which gives the upstream protective device room to operate. The 35 mm wide body leaves room for adjacent breakers in a multi‑pole grouping. IP20 for the main enclosure, IP40 at the terminals when the supplied gland plate is fitted — that matters in a panel with wash‑down risk or dust ingress.
