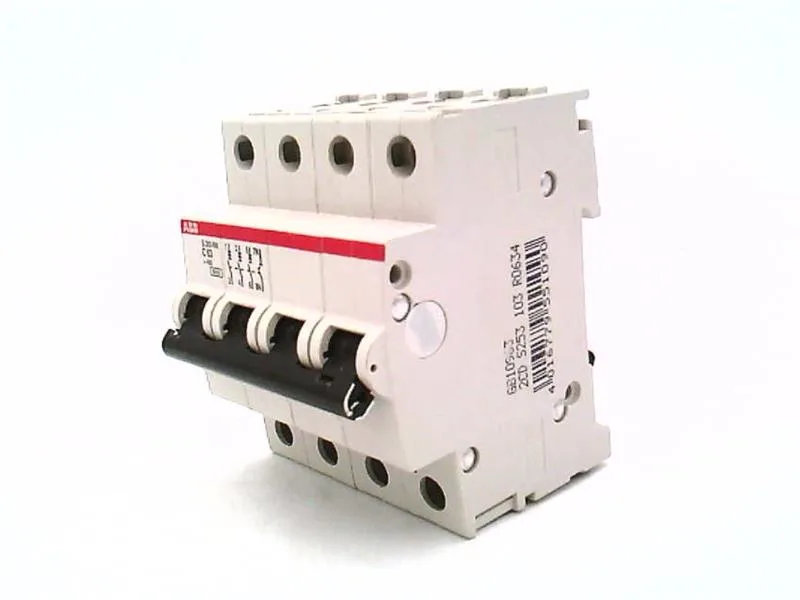

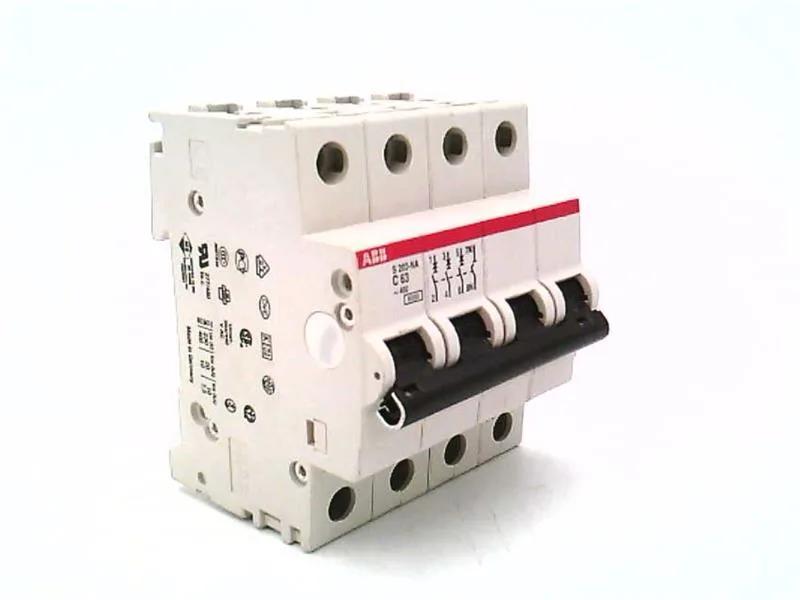

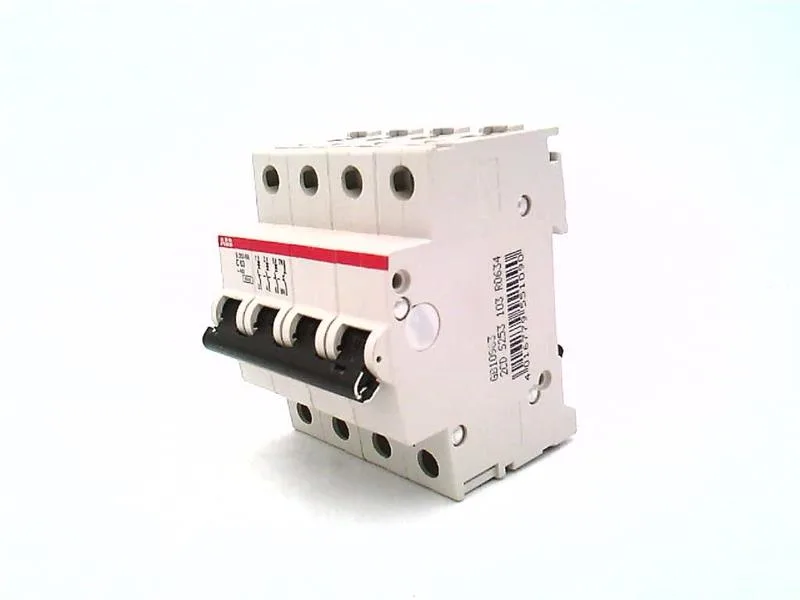

2CDS253103R0634, 4-pole C-curve MCB, 63 A, 440 V insulation, 20 kA Icu, DIN rail mount.
| Parameter | Value |
|---|---|
| Overvoltage category | III |
| Parameter | Value |
|---|---|
| Width | 70 mm |
| Height | 88 mm |
| Depth | 69 mm |
| Parameter | Value |
|---|---|
| Poles | 4 |
| IP rating | IP20;IP40 |
| Mounting | DIN Rail Mount |
| Current | 63 A |
| Terminal contact type | Bi-Directional Cylinder Lift |
| Voltage | 440 V |
| Tripping characteristics | C |
| Tightening torque - Screw-Type max. | 2.8 Nm |
| Rated Short-Circuit breaking capacity icn | 6 kA |
| Rated Short-Circuit breaking capacity icu | 20 kA |
The 2CDS253103R0634: This 4-pole miniature circuit breaker carries a C-curve trip characteristic, rated 63 A continuous current on a 440 V insulated system. Breaking capacity stands at 20 kA ultimate (Icu) and 6 kA rated (Icn), suitable for branch circuit protection in distribution panels. Torque the screw terminals to 2.8 Nm.
Mounts to DIN rail; terminals accept bi-directional cylinder lift connectors.
69 mm depth.
It is a 4-pole breaker.
