Motor load rating and what it means for the panel
The 3ABD00059343-D is an ABB ACQ531-04-585A-4+P972 drive rated 315 kW output power with 585 A continuous output current in normal use. That 585 A figure is the number to match against the motor nameplate full-load amps — if the motor draws 585 A or less at rated load, this drive carries it without derating. Input side accepts 380-480 V three-phase at 47.5-63 Hz, so it lands on 400 V or 480 V line systems globally without a transformer tap change.
Light-overload capability for variable-torque loads
Under light-overload duty the drive delivers 575 A output current at 315 kW. That 10 A gap between normal-use (585 A) and light-overload (575 A) ratings means the drive is sized for constant-torque applications like conveyors or extruders where the full 585 A is available, while the light-overload figure covers pump and fan curves where peak demand stays below the continuous ceiling.
Cabinet-built IP00 chassis — what it means for the enclosure

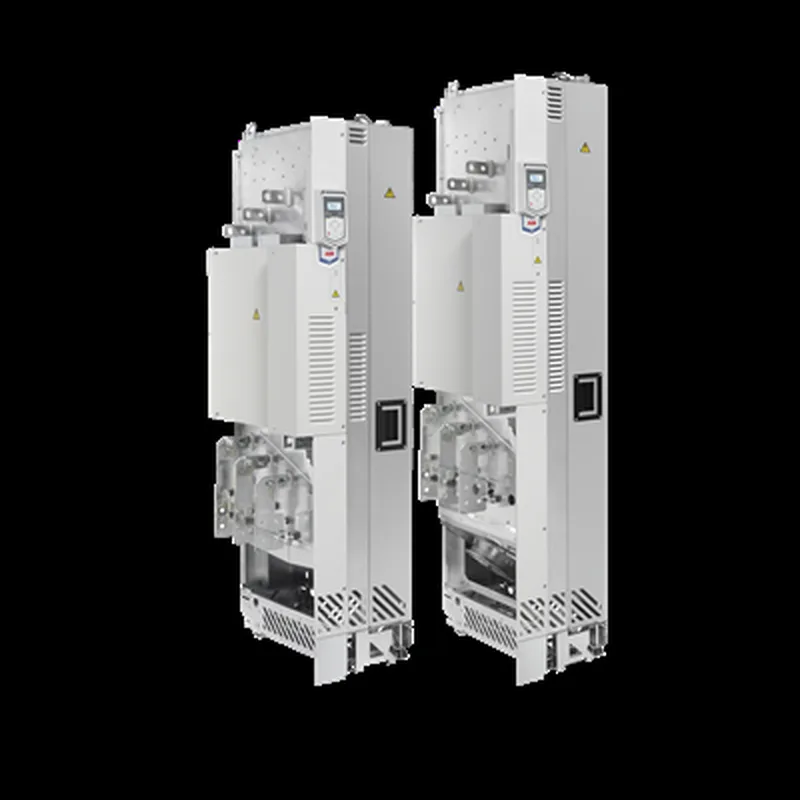

Frame R10 in an IP00 open-type, cabinet-built format. IP00 means no ingress protection on its own — it relies on the host enclosure for dust and moisture sealing. The cabinet-built mounting tells the panel builder this drive arrives as a chassis subassembly that bolts into a larger switchgear cabinet, not a standalone wall-mount unit. NEMA Open Type confirms the same: intended for indoor installation inside a locked electrical room or MCC lineup.
Active lifecycle — spares planning note
That means ABB still manufactures this order code — no last-time-buy window, no forced migration to a successor. For the MRO planner, this drive is a line-item you can stock as a spare without worrying about obsolescence mid-project.
