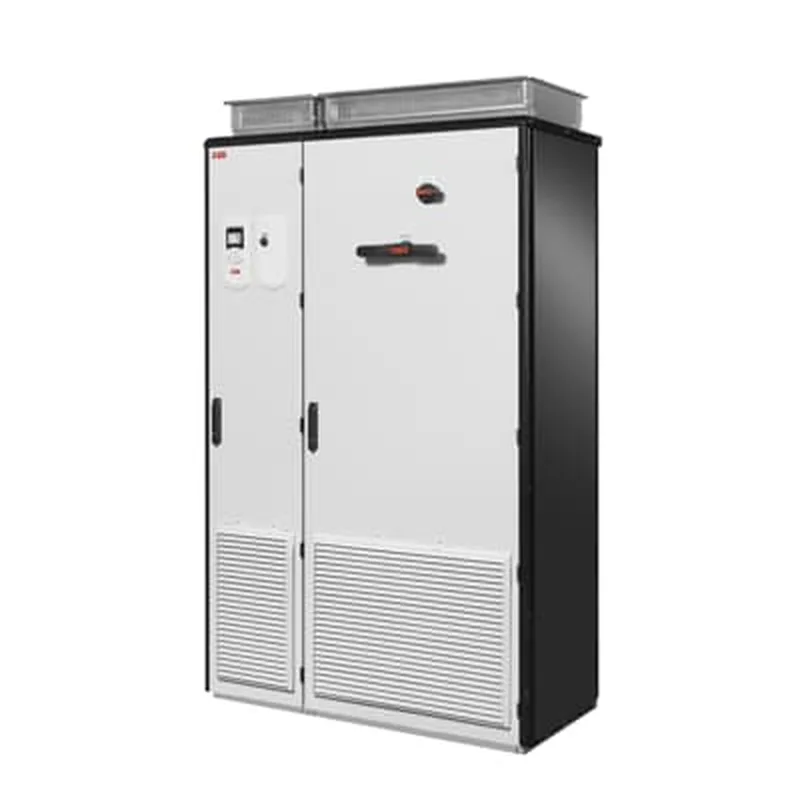

The ABB 3AXD50000050413 is an ACS880-17-0210A-7 regenerative drive rated for 200 kW normal-use output and 210 A continuous current on a 525 to 690 V three-phase supply. Frame size R11, NEMA 1 enclosure with IP22 protection. It includes the control unit and communicates via CAN.
Duty ratings that matter
Normal-use (Pn/In) lands at 200 kW / 210 A. Heavy-duty use (PhD/IhD) drops to 160 kW / 174 A. Light-overload use (PlD/IlD) is 200 kW / 200 A. The apparent power output is 251 kV·A. These are the numbers you spec against for continuous vs cyclic loading.
Installation constraints
Maximum ambient temperature is 40 °C. Altitude rating is 1000 m. Operating humidity range is 5 to 95% non-condensing. Input frequency range is 48 to 63 Hz. The drive is rated for Type 1 (NEMA 1) indoor use with IP22 ingress protection — no outdoor or washdown exposure.
Onboard I/O includes 2 analog inputs, 2 analog outputs, 7 digital inputs, and 5 digital outputs. Fieldbus interface is CAN; no Industrial Ethernet port is fitted from the factory.
Physical details
Frame size R11. Sound pressure level is 77 dB(A). Contains two lithium coin cells (CR2032, 3 V, 220 mAh each). Power factor is unity.
