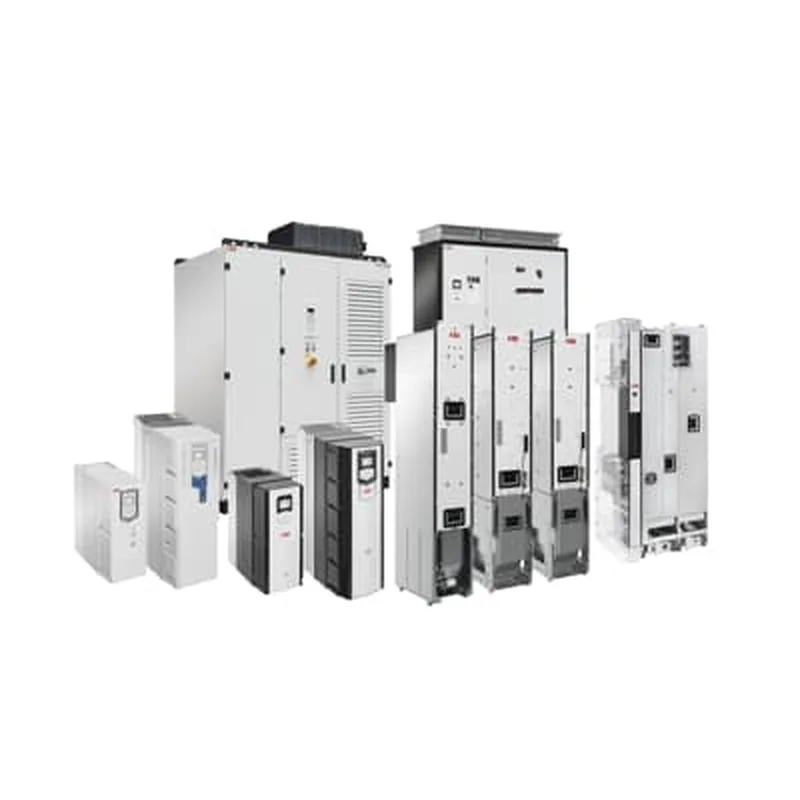

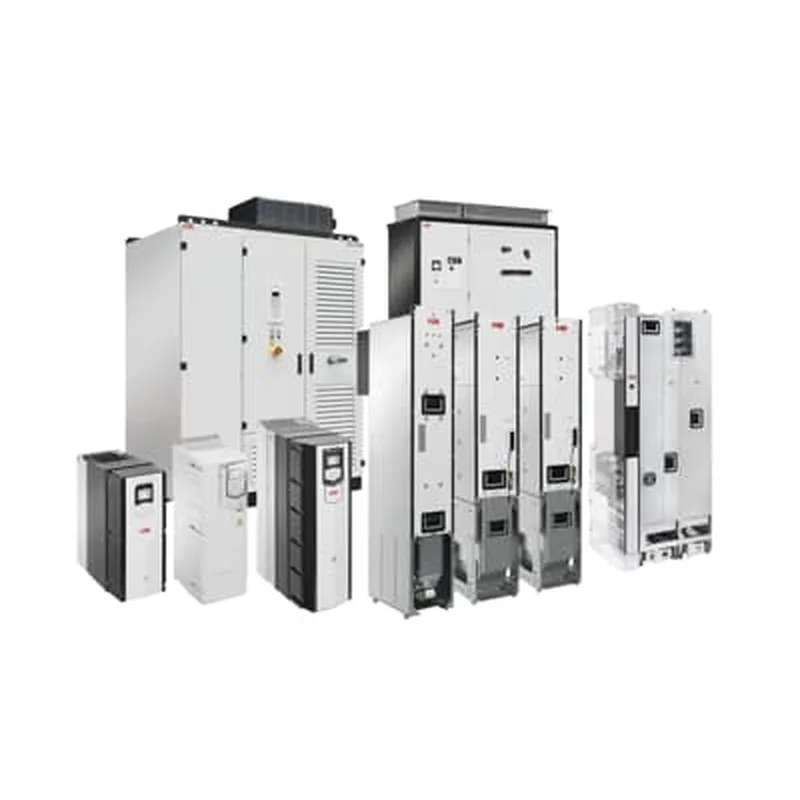

ABB 3AXD50000146147 — AC Drive (VFD) 600V

ABB 3AXD50000146147 ACS880-37 Drive, 160 kW, 174 A

MPN3AXD50000146147
Active

ABB ACS880-37 series, 3AXD50000146147, 160 kW normal-use output, 174 A output current, 525–690 V input, frame size R11, IP22.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3AXD50000146147 — Identification
ParameterValue
Frame sizeR11
3AXD50000146147 — Electrical (input)
ParameterValue
Input voltage range525 ... 690 V
Number of phases3-phase
Frequency range48 ... 63 Hz
3AXD50000146147 — Output / Performance
ParameterValue
Output power, normal duty160 kW
Output power, heavy duty132 kW
Output power, light overload160 kW
Output current, normal duty174 A
Output current, heavy duty142 A
Output current, light overload165 A
Output power (UL), light overload175 Hp
Output power (UL), heavy duty150 Hp
Output current (UL), light overload168 A
Output current (UL), heavy duty144 A
3AXD50000146147 — Mechanical
ParameterValue
NEMA enclosure typeType1
3AXD50000146147 — Environmental
ParameterValue
Degree of protection (IEC, IP)IP22

Product details

The ABB 3AXD50000146147 is an ACS880-37-0174A-7 low-harmonic drive rated for 160 kW normal use (Pn) at 174 A output current (In). Heavy-duty use delivers 132 kW (PhD) at 142 A (IhD); light-overload use matches the normal-use power at 165 A (IlD). Input voltage is 525–690 V three-phase, 48–63 Hz. Frame size R11 with IP22 protection and NEMA Type 1 enclosure. The drive includes a control unit and carries 2 analog inputs, 2 analog outputs, and 7 digital inputs / 5 digital outputs. Communication is via CAN. Ambient temperature is rated for maximum 40 °C; altitude up to 1000 m. Sound level is 77 dB(A).

The drive carries SCIP number 9ECED1FE-316A-4BF4-991E-2606BB5FE13A Finland and is classified under WEEE Category 4 (Large Equipment). It is exempt from EU ecodesign requirements (Regulation EU/2019/1781, §2.3.d) as a low-harmonic drive. The enclosure is NEMA Type 1 with IP22 protection.

Frequently asked questions

What are the key ratings of this drive?

Normal-use output is 160 kW at 174 A; heavy-duty output is 132 kW at 142 A. Input voltage is 525–690 V three-phase. Apparent power output is 208 kV·A.

What is the SCIP number for this part?

The SCIP number is 9ECED1FE-316A-4BF4-991E-2606BB5FE13A Finland.

What is the altitude rating?

Rated for installation at altitudes up to 1000 m.

What compliance documentation is available?

The drive is WEEE Category 4 and exempt from EU ecodesign requirements as a low-harmonic drive. The SCIP number is registered. Enclosure is NEMA Type 1 with IP22 protection.
