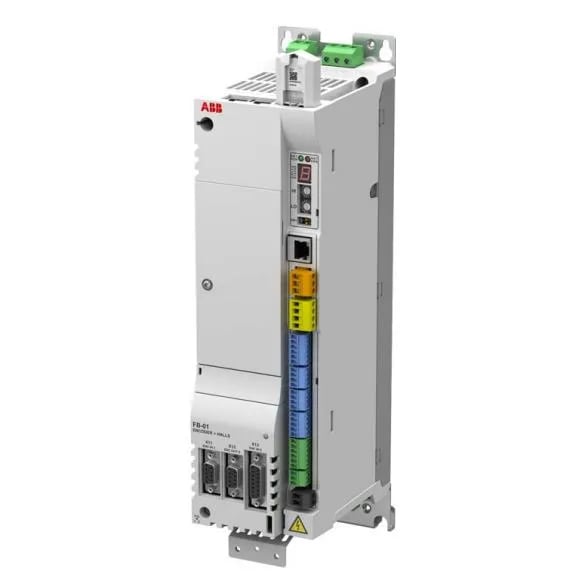

ABB 3AXD50000384815

ABB 3AXD50000384815 Servo Drive, 9 A, 200-480 V

MPN3AXD50000384815
Active

ABB 3AXD50000384815 LV AC servo drive, Frame A, 3-phase, 200–480 V input at 48–63 Hz, 9 A normal-use output, IP20 enclosure, active production.

$3,767.15Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026

Specifications

3AXD50000384815 specifications
ParameterValue
Input voltage200 ... 480 V
Output current, normal use9 A
Frequency48 ... 63 Hz
Phases3-phase
IP ratingIP20
Frame sizeA

Product details

What lands on the panel

The ABB 3AXD50000384815 is a low-voltage AC servo drive in ABB's Frame A chassis, drawing from a 3-phase supply across 200–480 V at 48–63 Hz and rated for 9 A normal-use output current. IP20 marks it for cabinet mounting rather than open-floor siting.

Integration checklist

Mains-side planning has to accept 200–480 V at 48–63 Hz on three phases. The IP20 rating assumes a closed cabinet, so EMC and finger-safe practices follow the cabinet boundary. Frame A is shared across the current siblings, so the panel cutout and mounting footprint are common between 9 A, 4.7 A, 4 A, and 13.5 A builds.

Frequently asked questions

What is the listed frame size for 3AXD50000384815?

The frame size is A, shared across the listed siblings in this servo-drive line.

What frequency window does 3AXD50000384815 accept?

The drive runs on 48–63 Hz across a 200–480 V three-phase input.

Is 3AXD50000384853 a drop-in second source for 3AXD50000384815?

3AXD50000384853 is the same Frame A chassis but rated 13.5 A versus 9 A, so the footprint matches while the continuous-current envelope does not — the upstream protective device and cabling should be rechecked before treating it as a like-for-like swap.
