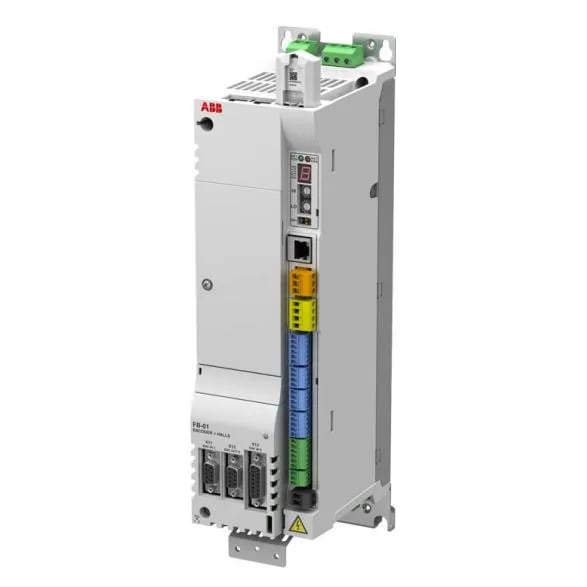

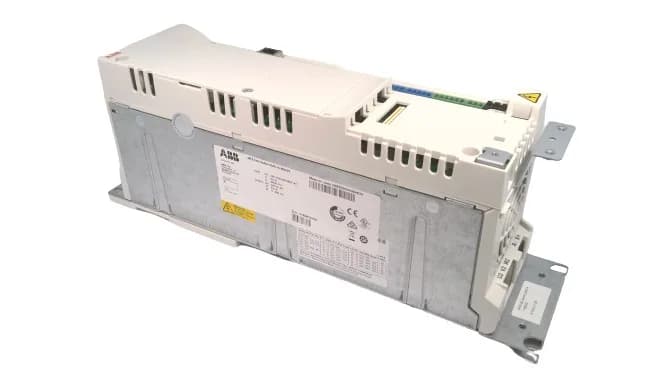

The 3AXD50000384822: This drive is classified as Product Not in WEEE Scope, the category ABB applies to certain drive SKUs and which dictates how end-of-life handling is documented in the project's compliance pack.
Sibling SKUs in the same Frame A family
ABB offers the MicroFlex e190 in the same Frame A, same 200 to 480 V input window, same IP20 form factor at progressively higher normal-use output currents. The 3AXD50000384839 sibling steps up to 4 A output, 3AXD50000384846 to 4.7 A, and 3AXD50000384815 to 9 A. Across the family the only decision-relevant difference is the output current rating; every other headline spec is shared. That rating delta is what governs a cross-reference question: a panel originally specified around the 4 A sibling will accept a 3AXD50000384822 only if the driven motor's continuous current stays under 3 A. Step-down is mechanically clean (same frame, same input, same enclosure) but electrically a downgrade, so the motor nameplate current — not the panel layout — is what decides fit.
How it sits in a cabinet build
As an IP20 Frame A drive, 3AXD50000384822 mounts inside a sealed panel with the gland plate and EMC layout handled per ABB's MicroFlex e190 installation practice. The 200 to 480 V input window means a single cabinet design can serve mixed-voltage plants without a step-up or step-down transformer on the line side.
