ABB 3AXD50000384839

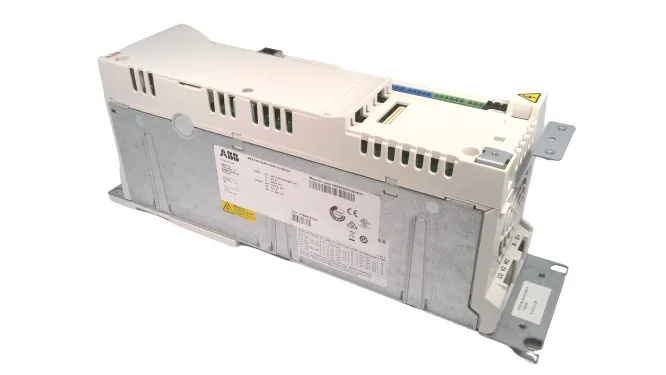

ABB 3AXD50000384839 Servo Drive, Frame A, 4 A, 200-480 V

MPN3AXD50000384839
Active

ABB 3AXD50000384839 LV AC servo drive, Frame A, 3-phase, 200... 480 V input, 4 A output normal use, IP20, IEC design MFE180-04AN-05A0-4+N8020.

$1,439.20Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026

Specifications

3AXD50000384839 specifications
ParameterValue
Input voltage200 ... 480 V
Output current, normal use4 A
Frequency48 ... 63 Hz
Phases3-phase
IP ratingIP20
Frame sizeA

Product details

Input is 3-phase across 200... 480 V at 48... 63 Hz, covering the listed feed regimes from a single part.

Sourcing posture and compliance paperwork

WEEE Category is listed as Product Not in WEEE Scope, which simplifies the disposal-side declaration when the drive is retired from a European panel — the paperwork has to be clean, and this one does not enter the WEEE stream.

Where it sits against same-frame siblings

A 3 A variant 3AXD50000384822 and a 9 A variant 3AXD50000384815 bracket this part from below and above on the same Frame A plate, giving a commodity manager room to size the BOM around output current without leaving the ABB Frame A family.

Panel-side fit notes

Frame A keeps the mounting footprint constant across the output-current range, so specifying 3AXD50000384839 in a panel that was laid out around a sibling leaves the DIN-rail or panel-cut geometry unchanged — the derating review is purely electrical. Plan the cabinet around the IP20 rating: this drive expects a closed enclosure with the gland plate and EMC gasket practice that the rest of the cabinet uses, and it belongs on the same bonded ground bus as the motor cable shield for the servo loop to stay quiet.

Frequently asked questions

When sourcing 3AXD50000384839, what is the closest functional second-source — 3AXD50000384846?

The closest functional second-source within the same family is 3AXD50000384846, which shares Frame A, 3-phase, 200... 480 V input, IP20, and 48... 63 Hz frequency with 3AXD50000384839 and steps output current from 4 A to 4.7 A.

Will 3AXD50000384839 drop into a panel that was specified around 3AXD50000384846 without rewiring?

The panel layout transfers cleanly. Both share Frame A, 3-phase, 200... 480 V, IP20, and 48... 63 Hz, so the mechanical footprint, input wiring, and enclosure practice are unchanged — the only delta is output current moving from 4.7 A down to 4 A.

MPN
3AXD50000384839
