ABB 3AXD50000507528

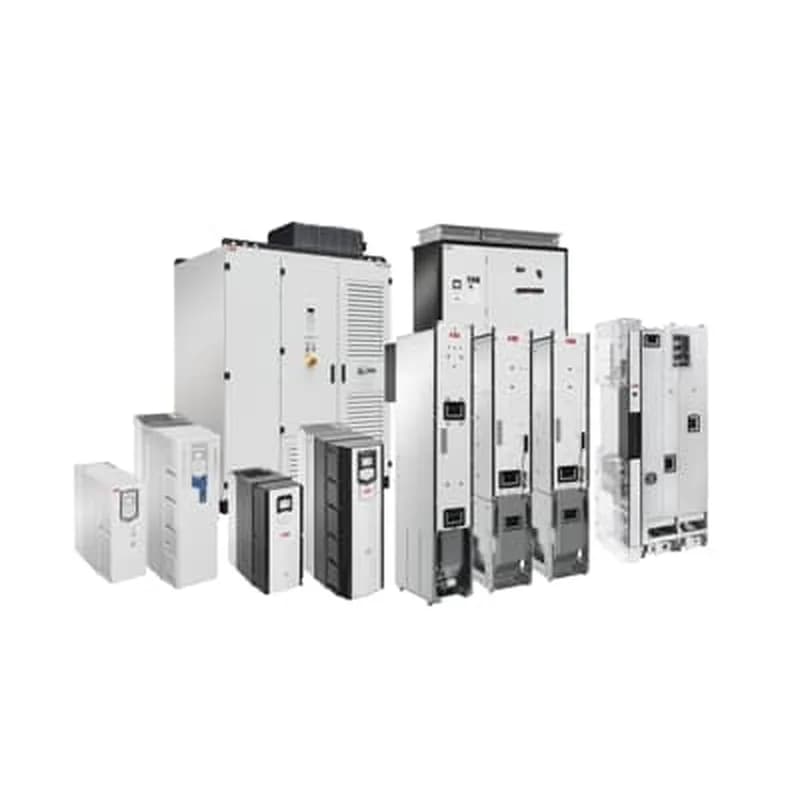

ABB 3AXD50000507528 ACH580-31 VFD, 124 Hp Heavy-Duty, 100 A

MPN 3AXD50000507528
Active

ABB ACH580-31 series ultra-low harmonic AC drive, 3AXD50000507528, 440-480 V 3-phase input, 124 Hp heavy-duty output at 100 A, IP55, NEMA Type12 enclosure.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3AXD50000507528 specifications
ParameterValue
Input voltage440 ... 480 V
Frequency50/60 Hz
Phases3-phase
IP ratingIP55

Product details

Heavy-duty rating and what it means for the load

The ABB 3AXD50000507528 is an ACH580-31 wall-mounted ultra-low harmonic drive built for HVAC applications. It delivers 124 Hp heavy-duty (UL) output at 100 A continuous — that's the current the drive can sustain into a motor without derating, not a peak number. For a 480 V fan or pump load running at full nameplate, this current ceiling sets the motor frame size you can connect.

Enclosure and environment — IP55 with NEMA Type12

IP55 means the drive is dust-protected and can handle water jets from any direction — suitable for washdown areas or outdoor installation under a roof. The NEMA Type12 rating adds indoor protection against dust, dripping non-corrosive liquids, and falling dirt. Together they cover most HVAC mechanical rooms, rooftop units, and light industrial environments without needing a separate cabinet. Input voltage range is 440-480 V 3-phase at 50/60 Hz. The wide tolerance handles nominal 480 V supplies and the sag you see on long feeder runs. The drive is designed for global 50/60 Hz grids — no frequency switch needed.

MPN
3AXD50000507528
