Line-interactive UPS for small equipment

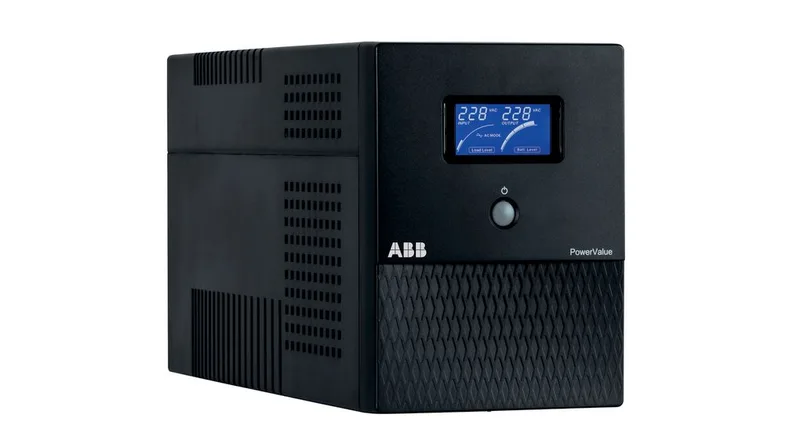

The ABB 4NWP100175R0001 is a PowerValue 11LI Pro line-interactive UPS rated for 360W output with a 7.2 Ah battery, standalone mounting, and three IEC C13 outlets. Efficiency is 95 %, which keeps internal heat low in a desk-side or rack-mount shelf. Backup time at full load is 3.5 min — intended for a controlled shutdown of networking gear or a small server, not extended runtime. Two interfaces are available: RS232 and USB, so power management software can initiate a graceful OS shutdown. Operating temperature covers 0 to 40 °C, which matches typical indoor IT environments.
Physical footprint and connections
The enclosure measures 330 mm deep, 100 mm wide, 142 mm high — a slim tower profile that fits on a desktop or side table. Input is a C14 socket, outputs are three C13 receptacles. No DIN-rail mounting.
