ABB A12-30-10-81 — Contactors

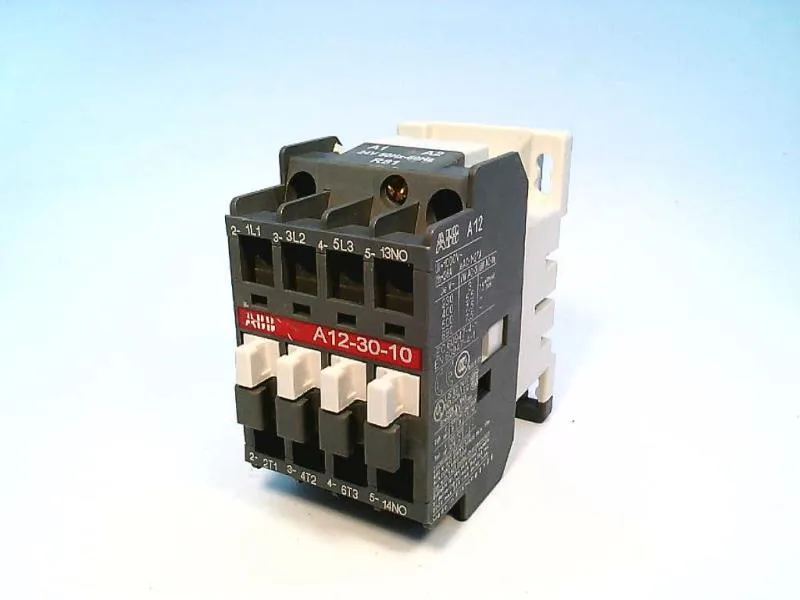

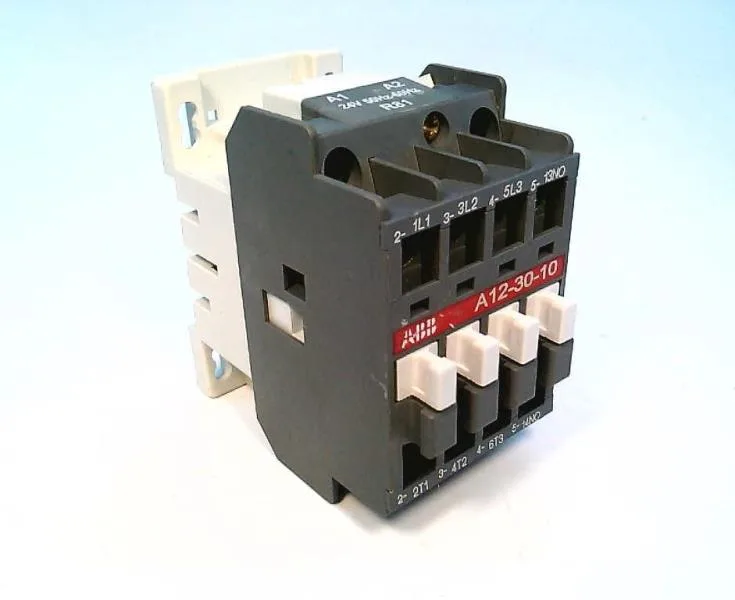

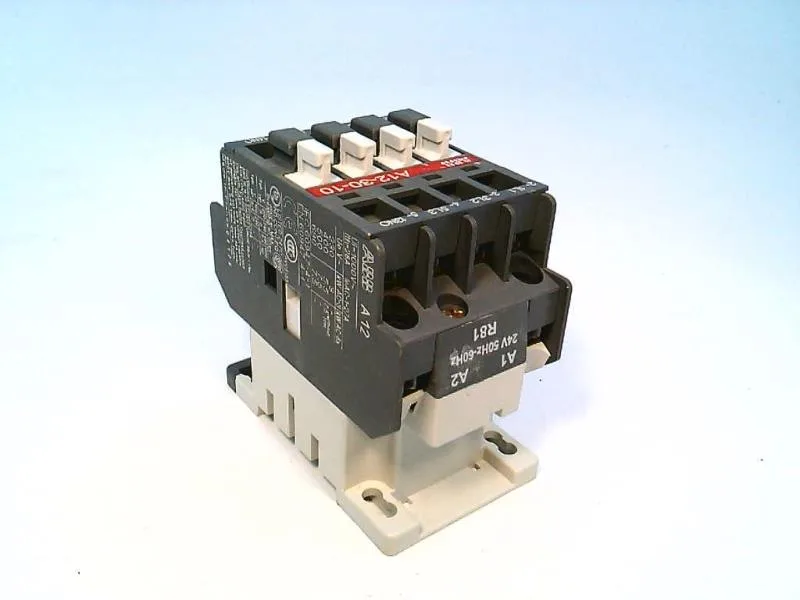

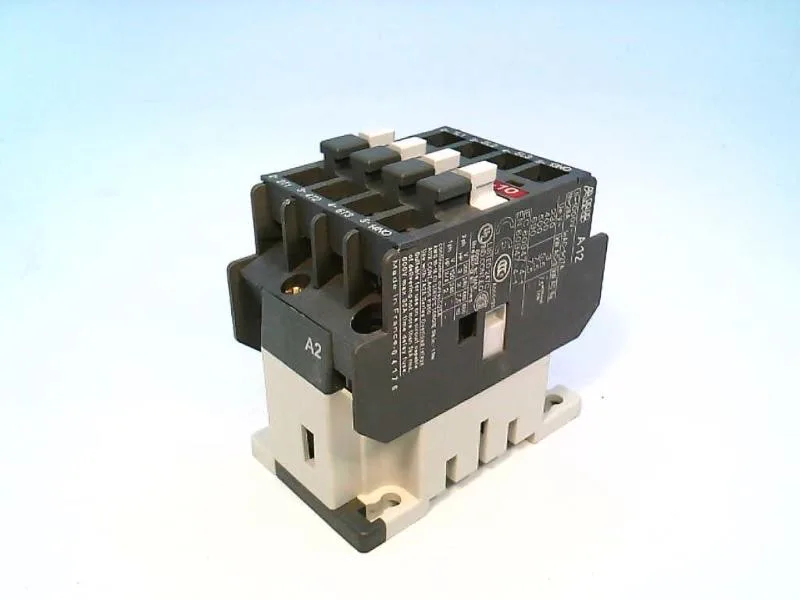

ABB A12-30-10-81 A-Line Contactor, 25 A, 3-Pole, 24 VAC Coil

MPNA12-30-10-81
End of Life

ABB A-Line IEC contactor, A12 frame, 3-pole, 25 A general-purpose, 600 V, 24 V AC coil, DIN-rail mount, 1 N.O. auxiliary contact.

$273.08Ref. price · indicative, final on quote
ABB A12-30-10-81 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

A12-30-10-81 — Specifications
ParameterValue
Amps25
DimensionsA12
Poles3
MountingDIN Rail
Volts AC600
Family (Style)A-Line
Volts AC control24

Product details

25 A load-switching ceiling

The A12-30-10-81: The 11 A motor current figure in the description sets the real ceiling for AC-3 motor duty; for a pump or fan drawing 11 A full-load, this contactor lives inside its thermal budget.

DIN-rail panel fit and control coil

Snaps onto standard DIN rail — no drilling, no backplate layout changes.

Built-in auxiliary contact

Comes with one N.O. auxiliary contact block integrated into the front — no separate add-on module needed for a seal-in or status feedback circuit. That saves a DIN slot and one wiring step during panel build.

Frequently asked questions

Where can I buy A12-30-10-81 and get a price?

Sourced through independent distribution against an RFQ. Submit a quote request for the quantity needed; current pricing and lot availability are confirmed at quote time. No stock-holding claim — each order is verified against the available surplus pipeline.

What is the amp rating of A12-30-10-81?

25 A general-purpose at 600 V. The motor current rating is 11 A in AC-3 duty — that is the figure to use when switching a motor load.

MPN
A12-30-10-81
