Motor load ceiling and coil match

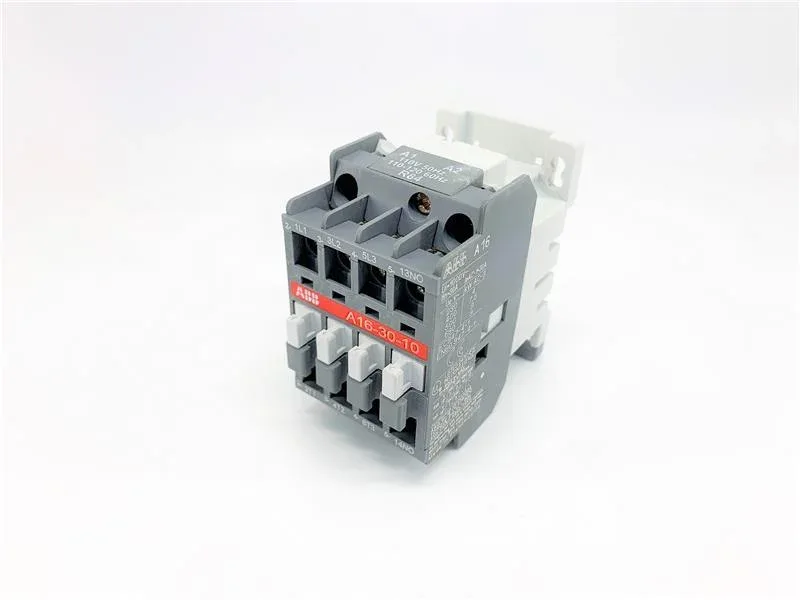

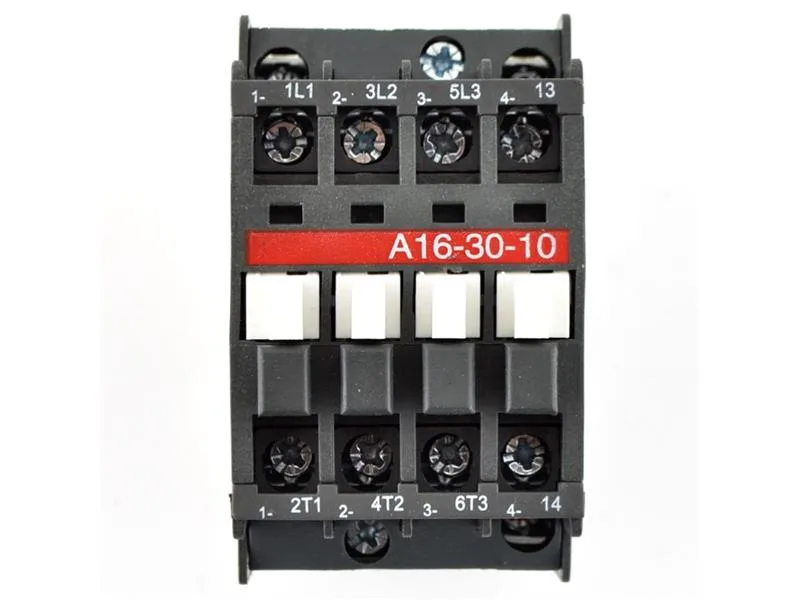

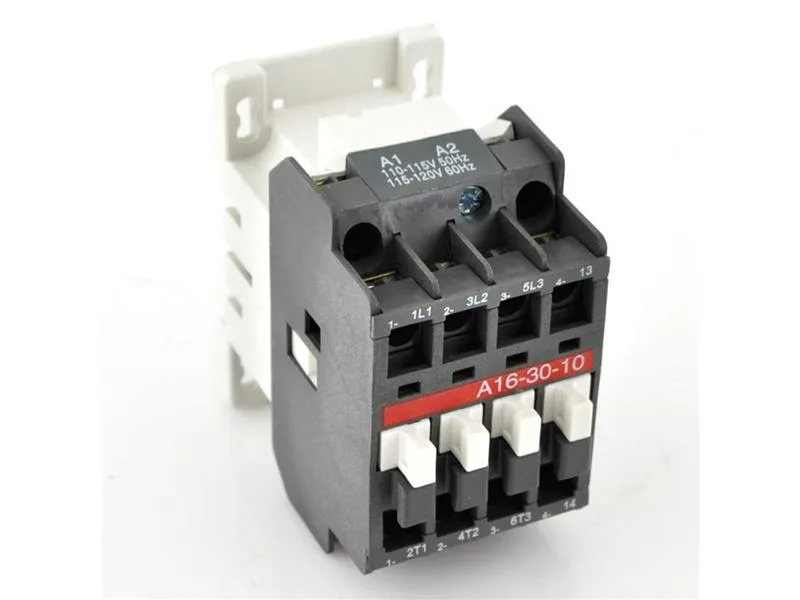

The A16-30-10-84: The 17 A rating in AC-3 duty sets the maximum motor current this contactor can switch — sized for a motor drawing that full-load amperage, not the general-purpose 30 A figure which applies to resistive loads. The 120 V AC coil must match the control transformer or PLC output voltage in the panel; a mismatch here means the contactor either drops out or burns the coil.
Configuration and panel fit
Rated 600 V, so it suits 400 V and 480 V motor control panels common in industrial installations.
Peer cross-reference — 1SBL136061R2110
The closest functional peer is the ABB 1SBL136061R2110, an AF-series contactor rated 25 A AC switching current at 690 V with 5.5 kW motor switching power and screw terminals.
