ABB A9-22-00-81 — Contactors

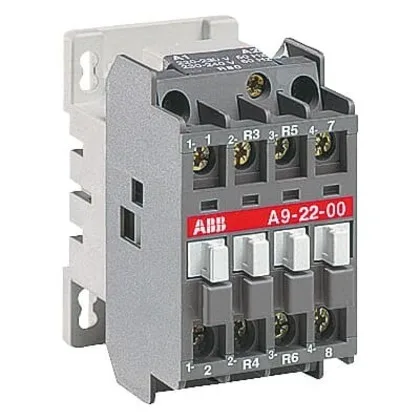

A9-22-00-81 Contactor, 21 A, 4-Pole, 24 V AC Coil, EOL

MPNA9-22-00-81
End of Life

A-Line Series, A9 Frame, IEC contactor, 4-pole, 21 A, 24 V AC coil, 2 N.O. + 2 N.C. contacts.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

A9-22-00-81 — Specifications
ParameterValue
Amps21
TypeContactor
Poles4
Volts AC control24

Product details

The A9-22-00-81 is a 4-pole IEC contactor from the A-Line Series, rated 21 A with a 24 V AC coil. The contact configuration is 2 N.O. and 2 N.C., which suits applications needing both normally-open and normally-closed main poles — for example, reversing or two-speed motor starters where one set breaks before the other makes.

The 24 V AC coil is standard for legacy control transformers; verify the coil pickup and dropout voltage against your control circuit's sag under load. The 21 A rating covers motor loads up to roughly 5.5 kW at 400 V AC-3, though the actual motor FLA must be checked against the contactor's utilization category.

Frequently asked questions

Who supplies A9-22-00-81 and how is it quoted for volume purchases?

We source A9-22-00-81 through independent distribution. Submit an RFQ for current availability and pricing — volume quotes are confirmed at quote time.

What is A9-22-00-81's listed amps?

21 A.

What is A9-22-00-81's listed type?

Contactor — specifically an IEC 4-pole contactor with a 24 V AC coil and 2 N.O. + 2 N.C. contacts.

MPN
A9-22-00-81
