Product introduction

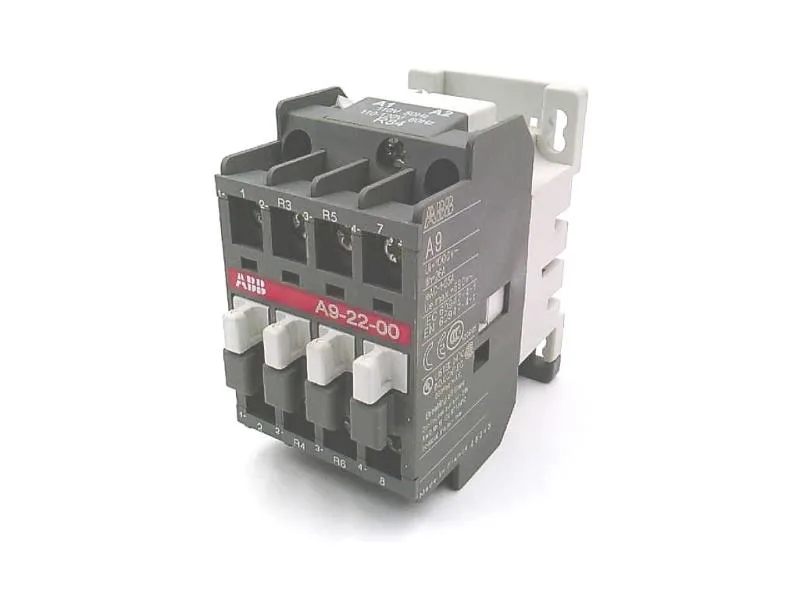

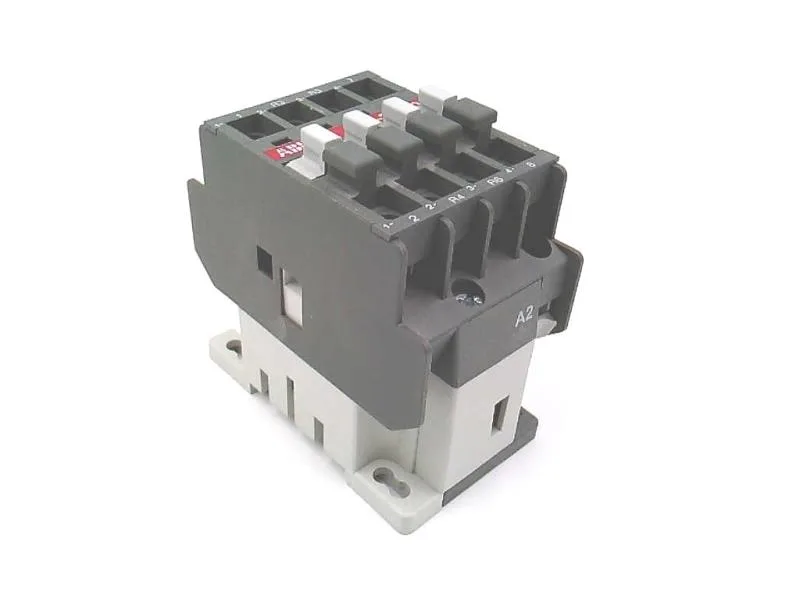

The A9-22-00-84: 4-pole IEC contactor rated for 21 A at 600 V AC with a 120 V AC coil. It carries two normally-open and two normally-closed contacts. DIN rail mounting keeps installation straightforward in crowded enclosures.
The 120 V AC coil is standard for North American control transformers. Coil inrush and hold power are typical for this frame size; verify the PLC or relay output driving the coil can handle the pick-up current. Four poles with a 2 N.O. + 2 N.C. contact arrangement allow reversing or two-speed motor circuits without an extra contactor block, or can switch two independent single-phase loads.
